Supplier catalogue product referenceMinglong HELI QYD E1 seated tow tractors
A seated towing family split into three supplier tables. Keep the unnamed optional 5-tonne column separate from the named QYD50S-E1 model.
Identify the enquiry scope
- Operating position
- Seated electric towing family
- Named model capacities
- QYD20/30/40/50/60S-E1: 2 / 3 / 4 / 5 / 6 t towing
- Unresolved option
- QYD40S-E1 table has unnamed optional 5 t column
- Image boundary
- One seated family form, not every model configuration
Reviewed 28 October 2026. Source dating: Official company product body, full model tables and primary original photograph reviewed 28 October 2026. Current technical revision and release date unverified.. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes

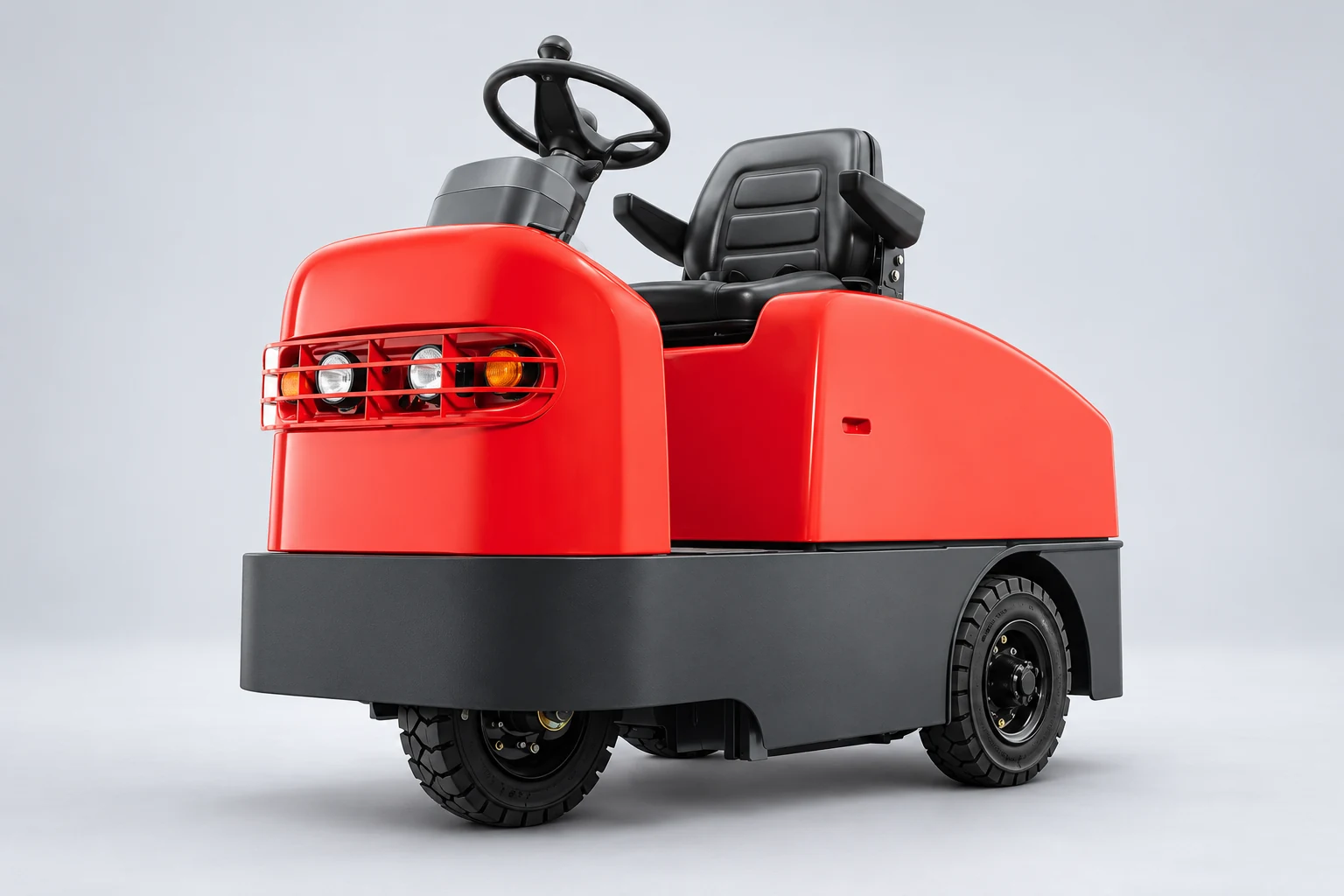

The official company catalogue groups seated QYD E1 electric tow tractors under a 2–6 tonne heading. Named model entries are QYD20S-E1, QYD30S-E1, QYD40S-E1, QYD50S-E1 and QYD60S-E1. Their respective towing-capability entries are 2, 3, 4, 5 and 6 tonnes. Those entries describe towing rather than goods carried on the tractor or forklift lifting. One source image represents the seated family; the small body marking in the source photograph is not used to identify all model columns.
Keep the reference and interfaces together
Three tables carry different model groups and dimensions. The 2/3-tonne table lists 1775 × 856 × 1375 mm; the QYD40S-E1 table lists 1865 × 1006 × 1375 mm; the 5/6-tonne table lists 2070 × 1100 × 1460 mm. The QYD40S-E1 table also contains a column labelled optional with a 5-tonne figure and no separate full model code. Keep that option unresolved: it is not automatically the same vehicle as the named QYD50S-E1 in the next table.
Keep the supply package explicit
Send the intended trailer configuration, coupling dimensions, route, gradients and duty to the quoting company and request an exact model-specific assessment. Battery chemistry, usable operating time, supplied charger and present production revision are not specified by the inspected tables. Current braking, hitch and capacity documents must be tied to the actual offer. Quzhou, Longyou and Lanxi appear on the same company website; catalogue presence does not establish which location holds or delivers a particular truck.
Questions for the proposed product
What should the requirement identify?
Record the exact complete model code, operating position, goods or trailer gross mass, load distribution, route, gradients, surface, turning space, duty, quantity and destination. A towing figure is not a platform payload or a forklift lifting capacity. Ask for an application assessment against the actual route.
Which documents should support the offer?
Request the current manufacturer datasheet, drawing, declared capacity basis, electrical and charging equipment, operating manual and configuration list. Keep optional equipment, undocumented alternatives and missing revisions visible in the supplier response. No equipment is approved for a particular site by this reference.
How should the commercial scope be compared?
Confirm the legal entity issuing the offer and invoice, condition, exact configuration, included accessories, inspection documents, delivery terms, lead time, warranty and support route. A catalogue entry is not a current stock promise. Existing procurement tools prepare a requirement; a link click is not an effective enquiry or order.
From product research to a comparable request
Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The company website identifies Minglong and publishes Quzhou, Longyou and Lanxi contact routes. This is the same catalogue used by the existing Lanxi supplier record; its warehouse references remain linked rather than duplicated. Four towing and fixed-platform product bodies, complete tables and original images were read. Figures are attributed supplier catalogue entries. Current authorization, legal registration, branch stock, battery and charger packages, test results and application suitability are not independently verified. Keep complete model suffixes and unresolved options in a written offer. Illustrations explain family form and do not prove stock, dimensions or a delivered configuration.
