NOBLELIFT OPK-160
1.6 t very narrow aisle tri-lateral stacker. Treat the OPK-160 as a truck-and-warehouse system: confirm pallet geometry, aisle guidance, floor requirements and residual capacity for the exact mast.

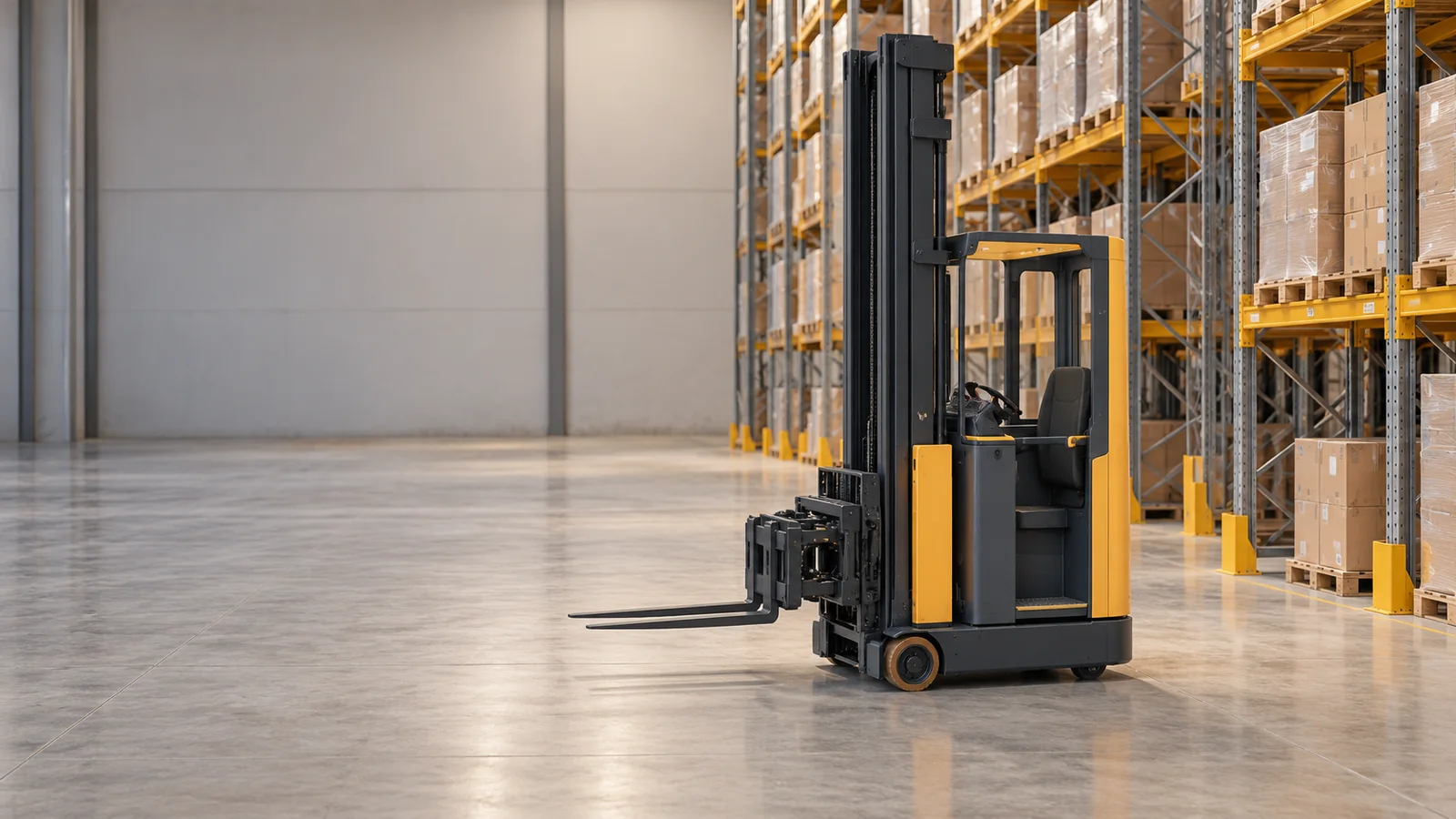

Reviewed 2026-09-30 · manufacturer claims remain attributed · quotation-specific evidence requiredEditorial VNA application illustration. It does not depict a verified OPK-160 configuration or establish aisle clearance or lifting performance.
Published scope
Start with the claim, then identify the offered truck.
The facts below summarize the source reviewed by ForkliftIQ. They do not prove current availability, regional configuration or suitability for a particular site.
Buyer interpretation
Treat the OPK-160 as a truck-and-warehouse system: confirm pallet geometry, aisle guidance, floor requirements and residual capacity for the exact mast.
A model name helps organize research. Technical approval still depends on one exact configuration and a written operating requirement.
Application boundary
A VNA truck should be shortlisted with the rack layout, not as an isolated capacity label. Record the pallet, goods envelope, beam height, floor condition, aisle entry and end-of-aisle transfer task. Ask the responsible parties to approve the truck and warehouse combination before treating a published aisle number as a usable layout.
Configuration evidence
The manufacturer parameter table gives one reference lift height, while its accompanying product graphic presents other height descriptions and describes a man-up operator arrangement. Those references must not be merged into a single guaranteed configuration. Require a current drawing that labels fork height, cabin position, mast envelope and applicable capacity.
Operating-system check
Separate nominal capacity from capacity at the required height. Specify the real centre of gravity, fork or attachment and overhang. The energy entry similarly needs a battery and charger identification rather than an assumed chemistry, charging time or shift duration. Preserve the offered option schedule with the quotation.
Information to measure before requesting this model
Record pallet length and width, entry orientation, maximum goods dimensions, mass, overhang and centre of gravity. Measure clear working aisles, rack beams, cross-aisles, aisle entrances, doors and overhead obstructions. Identify floor joints, transitions and conditions that need a supplier or site-engineering review.
Map pallet storage and retrieval, piece picking if required, transfer vehicles, pedestrian access and charging windows. Ask the truck supplier and rack or guidance provider to identify the complete acceptance requirements and the parties responsible for each item. Keep assumptions, exclusions and unverified dimensions visible in the purchasing brief.
Questions for the quotation
- Which pallet orientation, load overhang and clearances were used for the aisle figure?
- Which mast and capacity chart apply at our highest beam and actual load centre?
- What guidance, floor and aisle-entry requirements apply to the offered system?
- What operator-cabin, recovery, battery and local support package is included?
Documents to request
Ask for the complete model and option codes, a dated model-specific data sheet, dimensions, the configuration-specific load chart, battery and charger data, attachment approval, tyre specification, operator and maintenance manuals, scheduled service requirements and the applicable destination-market conformity records. The contracting party should identify who commissions the truck, provides training, supports diagnostics, supplies parts and carries warranty responsibility.
How to compare an alternative
Build one comparison sheet and hold the operating case constant. Use the same load, load centre, lift height, attachment, aisle or route, gradients, floor, temperature, shifts and charging window for every candidate. Ask suppliers to show where each quoted value comes from and whether it is standard, optional, calculated, tested or dependent on a market package.
Separate truck price from the operating system around it. Include charger and electrical work, battery replacement assumptions, tyres, scheduled service, diagnostic access, software or telematics fees, training, commissioning, freight, spare parts and expected downtime support. A lower equipment price can produce a higher operational cost when these boundaries are omitted.
Commercial and delivery boundary
Record the legal seller, Incoterm, delivery location, included options, excluded installation work, document language, acceptance method, warranty start, response time and responsible service entity. Require written change control when the supplier substitutes a mast, battery, charger, tyre, controller or software package after the technical review.
Parts and service identity
The family name is not sufficient for a parts match. Preserve the data plate, full model, serial number, mast and attachment details, battery voltage, controller and display labels, old component number, connectors, ports, mounting points and dimensions. Ask the source of every proposed replacement: catalogue record, drawing, supersession notice or written manufacturer confirmation.
Aisle width is a documented load case
The quoted aisle must identify the pallet orientation, load envelope, fork head, rack geometry and clearances. Record overhanging goods and unusual pallet shapes separately. A reference dimension for one pallet size cannot settle a different warehouse layout. Ask for a drawing of the operating envelope and confirmation of the actual load case.
Cross-aisles and entry transitions are separate from working aisles. Measure how the truck enters, exits, transfers a pallet and parks. Keep the rack face, columns, guards and fixed obstacles on the layout. A turning figure does not replace the complete swept-path review for the offered combination.
Guidance and floor requirements belong in the offer
Ask whether the system uses a specified guidance method, what equipment is required and who installs and verifies it. Obtain the relevant truck and infrastructure documents instead of assuming that a narrow aisle truck includes every guidance component. Agree the interfaces between the machine, rack and site.
Request the manufacturer's floor requirements for the proposed operating height and arrangement. Have the responsible site party assess the actual floor and record any corrective work. This page does not assign a floor-flatness class, tolerance or rail dimension without configuration-specific documentation. Preserve the acceptance measurements with the installation record.
Man-up operation: distinguish the cabin from the forks
The manufacturer's accompanying graphic identifies a man-up turret truck. Clarify whether the offered operator arrangement provides seated, standing or another approved format and which cabin equipment is included. The cabin, forks and top of the mast have different measurement references. Ask for a drawing that labels each position.
If the work includes piece picking, document how goods are carried and transferred and require the applicable limits and instructions. Define operator instruction, inspection, commissioning and recovery responsibilities before delivery. Request the manufacturer's recovery procedure and the local service response; do not create an improvised procedure from a marketing illustration.
Resolve the public height descriptions
The parameter table and the source graphic do not present the same single height reference. They may describe different mast options or operating measurements, but that explanation needs written confirmation. Keep the model code, mast identification, revision date and regional package together. No maximum-height option or retained capacity is inferred from the graphic here.
Ask for the chart covering the actual beam height, load centre, fork head and attachments. Capacity at height must come from that chart. Record any difference between the quotation and public source and require approval for later substitutions.
Build the acceptance and parts record
Agree acceptance around representative pallets, the highest required placement, entry transitions and the defined operating task. Include charging installation, instruction, rack or guidance interfaces and service documentation in the scope. The responsible supplier should identify what is verified before delivery and what remains to be checked during commissioning.
Preserve the truck and mast plates, turret or fork-head identity, operator-cabin components, controls, battery and charger labels, guidance hardware and wheel details. Obtain documented fitment before replacing parts, especially components associated with the lifting cabin or fork head. Use the parts identification request to organize evidence, not to infer compatibility from a model name.
Compare with a different warehouse route
The EP CQD20LB reach-truck route provides a separate comparison for rack access. The NOBLELIFT CBT15 counterbalance route covers another operator and transfer arrangement. Keep the same pallet, load and site brief when comparing, while retaining each equipment type's own geometry and capacity evidence.
Evidence boundary
ForkliftIQ has not inspected or tested this truck. Published capacity, dimensions, energy and software statements remain attributed to the manufacturer source. Current availability, exact configuration, regional documentation, dealer authority, lead time, field performance and warranty must be confirmed in writing for the offered truck.
