Anqing Heli AQ-Q03G2-10000 rough-terrain drive axle

What the official reference establishes

The official detail names AQ-Q03G2-10000 as a “3.5t rough-terrain forklift drive axle assembly”, dated 29 May 2025. Its own product photograph confirms which catalogue form accompanies that identifier. The 3.5t title is not a published static or dynamic axle-load rating and does not establish compatibility with every 3.5t forklift. The inspected body supplies no controlled drawing, gear ratio, track dimension, hub pattern or numeric brake specification.

Keep the reference and interfaces together

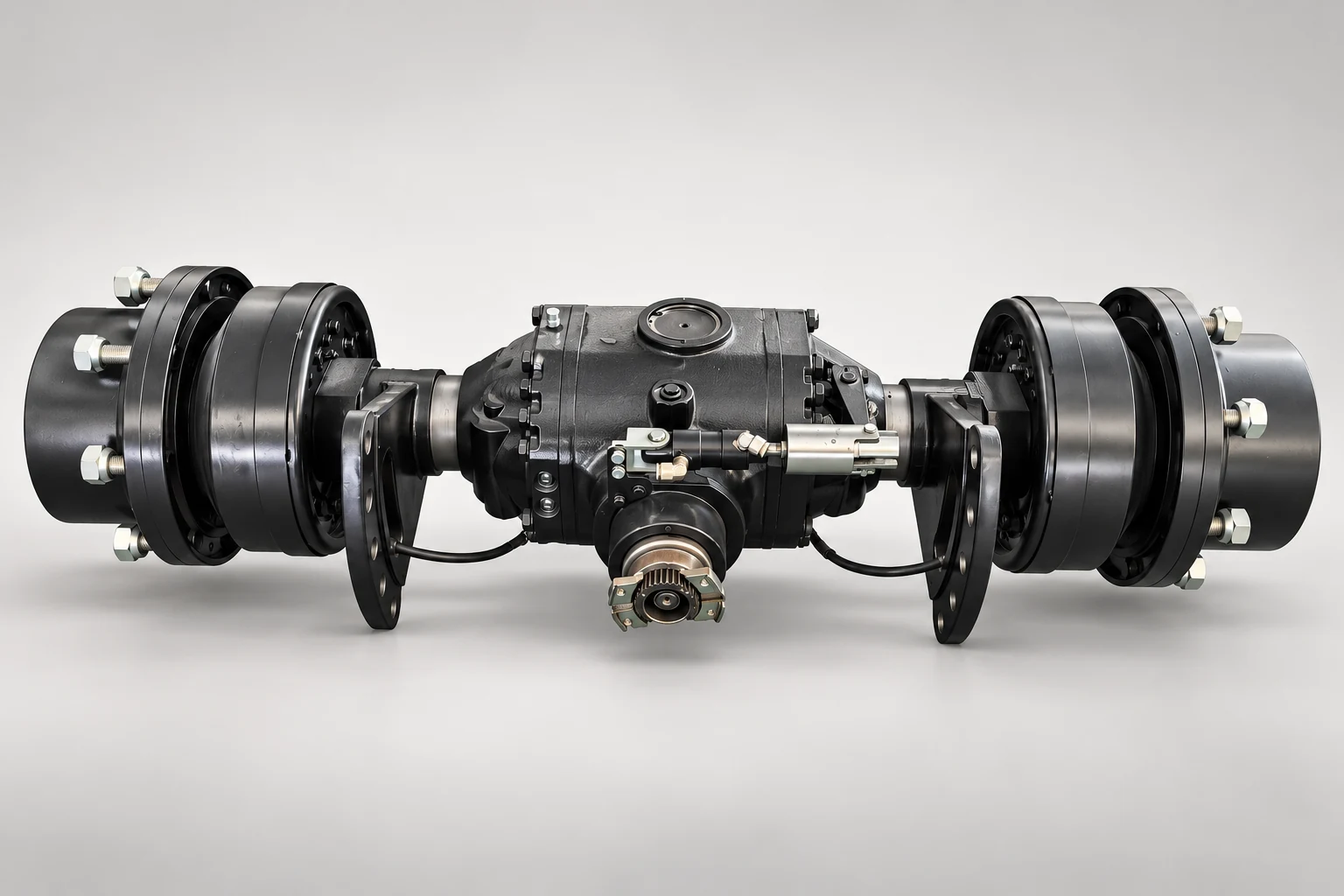

Keep this Q03G2 drive assembly distinct from the supplier’s Z03G4 steering-labelled assembly and L02A7 tow-tractor drive assembly. The illustrated central case, end hubs and mounting forms help a buyer recognize the type of requirement, but do not establish flange dimensions, splines, reduction stages or the components included in a quotation. Separate drive and steering references are not automatically a matched four-wheel-drive kit or a conversion recommendation.

Keep the supply package explicit

Provide the truck serial identity, installed axle label, configuration records and available mounting and wheel-interface drawings. Ask for the exact ratio, input connection, axle/load basis, hub details and braking scope, with a written model/revision matching basis. Confirm what the quoted total assembly includes and which seals, hubs, brakes or other service parts are separate. Current supply status, approval for the actual vehicle and commercial terms remain open.

Questions for the proposed product

Which identity should the request preserve?

Send the complete truck and assembly nameplates, full part number and suffix, revision or serial range, quantity, destination and required supply scope. Keep the installed assembly photographs and available parts records together. A similar housing or tonnage label cannot establish a replacement match.

Which interfaces need written confirmation?

Request a current controlled drawing, dimensional and mounting schedule, mating-component details and the supplier’s matching basis for the actual vehicle. Ask who approves the application and what documents define the supplied assembly and exclusions. Do not use an illustration as a measuring or installation guide.

What should the quotation state?

Confirm the legal quoting entity, exact assembly code and revision, included motor, wheel, brakes, actuator or service items where applicable, current documentation, condition, delivery, warranty and exclusions. Existing purchasing links prepare a requirement; following one does not send or prove a valid enquiry.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The HELI-hosted company introduction names Anqing Heli Axle and states its affiliation to Anhui Heli. Four official product-detail bodies dated 29 May 2025 and their individually mapped original photographs establish catalogue identifiers and product forms. They do not supply controlled engineering drawings or numeric application specifications. The existing drivetrain identification guide already mentions two of these codes and remains linked and unchanged. Title tonnage, visual resemblance and shared catalogue categories do not establish load ratings, fit, matched sets, stock or included supply. Current technical and commercial documents must define the proposed assembly.
