PM120 manual crank mini stacker

What the official product catalogue establishes

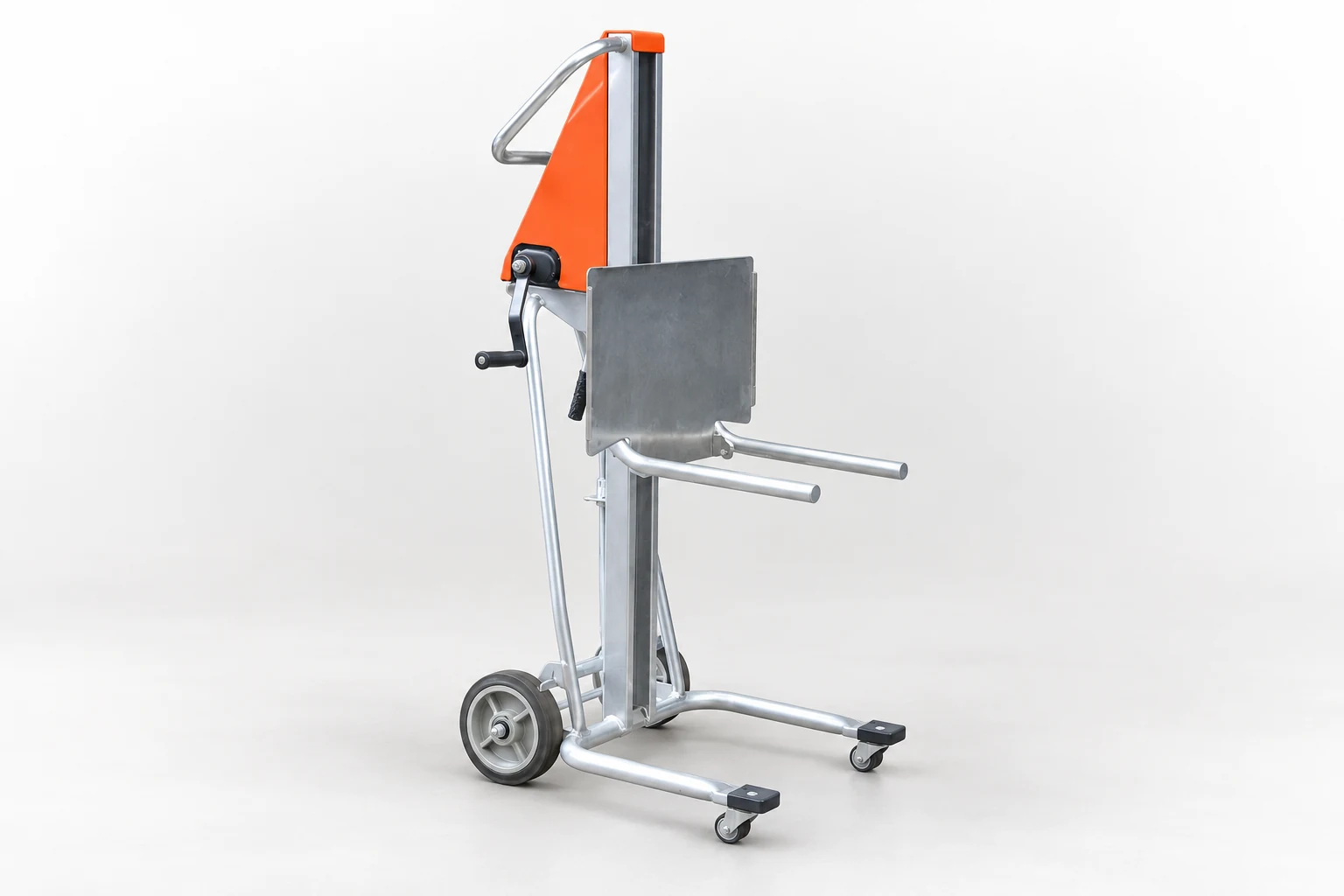

Tongyang identifies PM120 as a mini hand-cranked stacker. Its official table gives a 120 kg rated load, 200 mm load centre, 1,085 mm lifting height and 100 mm minimum fork height. These are attributed catalogue values, not an independent load test. The product images show a narrow upright frame, crank mechanism and a small load-support platform or prongs. The reference is therefore for light workstation handling, not a substitute specification for a full-size warehouse pallet stacker. The neighbouring PM120A listing is a separate catalogue entry; its dimensions and construction have not been transferred to this page.

Define the work before choosing a configuration

Describe the actual box, component or container being moved: its mass, centre of gravity, base shape and required support area. A small item can still be unsuitable if it projects far beyond the published load centre or cannot sit securely on the proposed support. Send a photograph and a dimensioned sketch of the load and receiving surface with the enquiry. Ask for a drawing of the exact platform or fork arrangement, minimum and maximum working positions, access clearance and wheel arrangement. The source lists nylon load wheels and PU rear wheels; this is not a guarantee for a particular floor, slope or outdoor route.

Keep the supply package explicit

Keep the crank assembly, load-support accessory, wheels, instructions and replacement-parts identification visible in the offer. Ask whether the illustrated platform is included, optional or an example from another configuration. The source mentions EN1757, but no independently verified conformity file was reviewed for this reference; do not treat the wording as a certificate. A supplier response should identify the exact model revision and documents offered, rather than simply repeat the marketing description. Compare this model with the other handling families through the existing company profile; no availability or suitability is implied by inclusion here.

Questions for the proposed product

Is PM120 the same product as PM120A?

The supplier lists them separately. Request both current drawings if comparing them; shared prefixes do not establish identical construction or interchangeable parts.

Does the 120 kg figure cover every load shape?

No such conclusion is established here. The source states a 200 mm load centre, and the actual load support and intended use need documented review.

What should accompany an enquiry?

Provide load dimensions, mass, support points, receiving height, floor conditions, daily handling frequency, destination and the required included accessories.

From product research to a comparable request

Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.

Sources and evidence boundary

The source is Tongyang / YING-LIFT’s official product centre. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
