Wuxi Tongyang / YING-LIFT supplier profile / YLF single-scissor

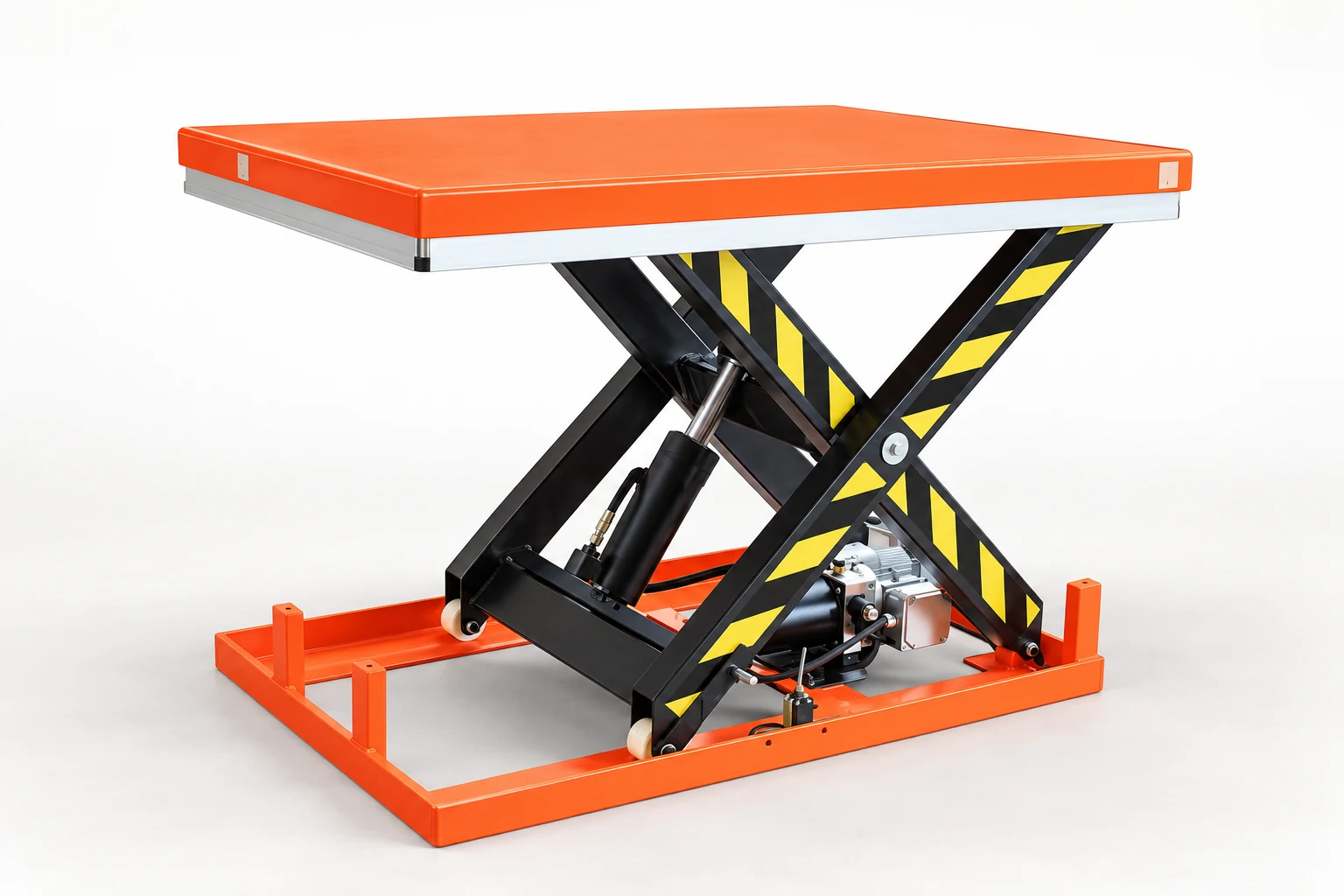

Supplier-published product familyYLF fixed single-scissor electric lift tables
Supplier-listed fixed lift tables with several platform sizes and capacity groups. Use YLF1001 as a documented example, then specify the exact table and site interface.
Identify the enquiry scope
- Published range
- YLF1001–1008, YLF2001–2008 and YLF4001–4008
- Example: YLF1001 rated load
- 1,000 kg, supplier table
- Example: YLF1001 platform
- 1,300 × 820 mm; 205–990 mm height
- Example: YLF1001 base
- 1,260 × 680 mm
- Power listing
- 110 / 220 / 380 V alternatives; exact supply unconfirmed
Reviewed 21 October 2026. Dimensions and ratings are attributed to the supplier table, not independent testing; request current exact-model documents.
What the official product catalogue establishes
Tongyang's fixed single-scissor electric lift-table page publishes three capacity groups and multiple platform dimensions. The YLF1001 row gives a rated load of 1,000 kg, platform size of 1,300 by 820 mm, base size of 1,260 by 680 mm and platform height range of 205 to 990 mm. Those figures belong to that row, not every YLF table. The same page lists YLF2001 and YLF4001 groups with different ratings and dimensions. This reference keeps the official family together while showing one clearly identified example. It is distinct from the supplier's double-scissor, ultra-low, U-shaped and mobile tables, whose construction should not be inferred from a shared prefix.
Define the work before choosing a configuration
A fixed goods lift table is a site interface as well as a purchased machine. Prepare the load footprint and distribution, receiving heights, surrounding equipment, loading method, usable floor area and electrical supply information. Ask the supplier for an exact-model general-arrangement drawing and a documented interface review. A platform dimension alone cannot resolve concentrated loads, off-centre loading, pit requirements or interaction with a conveyor. Keep these as questions for the proposed configuration. This page does not establish a personnel-lifting application or provide installation, adjustment or maintenance instructions.
Keep the supply package explicit
The source mentions perimeter stopping devices, hydraulic valves and anti-pinch design. These are manufacturer descriptions, not an independent safety assessment or confirmation that a particular proposed installation complies with local requirements. Ask which devices and controls are included in the current offer and what instructions and conformity documents accompany them. The voltage column gives alternatives rather than proving that every table accepts all supplies. Confirm voltage, phase, frequency, control arrangement, power-unit location, lifting duty, shipping mass and packing. Any required technical approval should be specific to the actual site and supplied table.
Questions for the proposed product
Do all YLF single-scissor tables use YLF1001 dimensions?
No. The supplier table has multiple rows with different platform, base and height dimensions. Keep the full model code on the drawing and offer.
Is this a mobile scissor work platform?
The reviewed page describes a fixed goods lift-table family. It does not establish mobile travel or suitability for lifting people.
Does the voltage list mean universal electrical compatibility?
No. The exact power and control configuration must be identified for the destination supply and the quoted unit.
From product research to a comparable request
Prepare a written requirement with the load, load centre, handling height, support dimensions, site interfaces, operating conditions, destination and quantity. Ask each shortlisted supplier to answer the same requirement and identify assumptions or exclusions. Keep the proposed equipment or attachment, accessories, documentation, delivery and support scope visible as separate lines. An equivalent headline capacity does not by itself make two offers comparable.
Sources and evidence boundary
The source is Tongyang / YING-LIFT’s official product centre. It establishes published product-family presentation, not local stock, a confirmed delivery date, a specific quotation, export coverage or a technical approval. Manufacturer benefits and safety, performance, emissions, certification and savings claims have not been independently verified here. Request current exact-model documentation and appropriate technical review for the actual transaction. This is selection and procurement research, not operating or repair guidance.
https://www.ying-lift.com/product/LiftT/5.html
