Jiada SJZ powered lift tables

What the official reference establishes

The official SJZ series page describes powered travel and powered lifting on a flat-platform truck. It lists nominal-load options of 500, 800 and 1,000kg. Its readable table groups SJZ0.5Ⅱ and SJZ0.8Ⅱ/SJZ1Ⅱ and gives a 1020 × 610mm platform entry, 470mm minimum height and 1000mm maximum height. Those shared cells are not proof that every single- and double-scissor option uses one identical specification.

Define the work before choosing a configuration

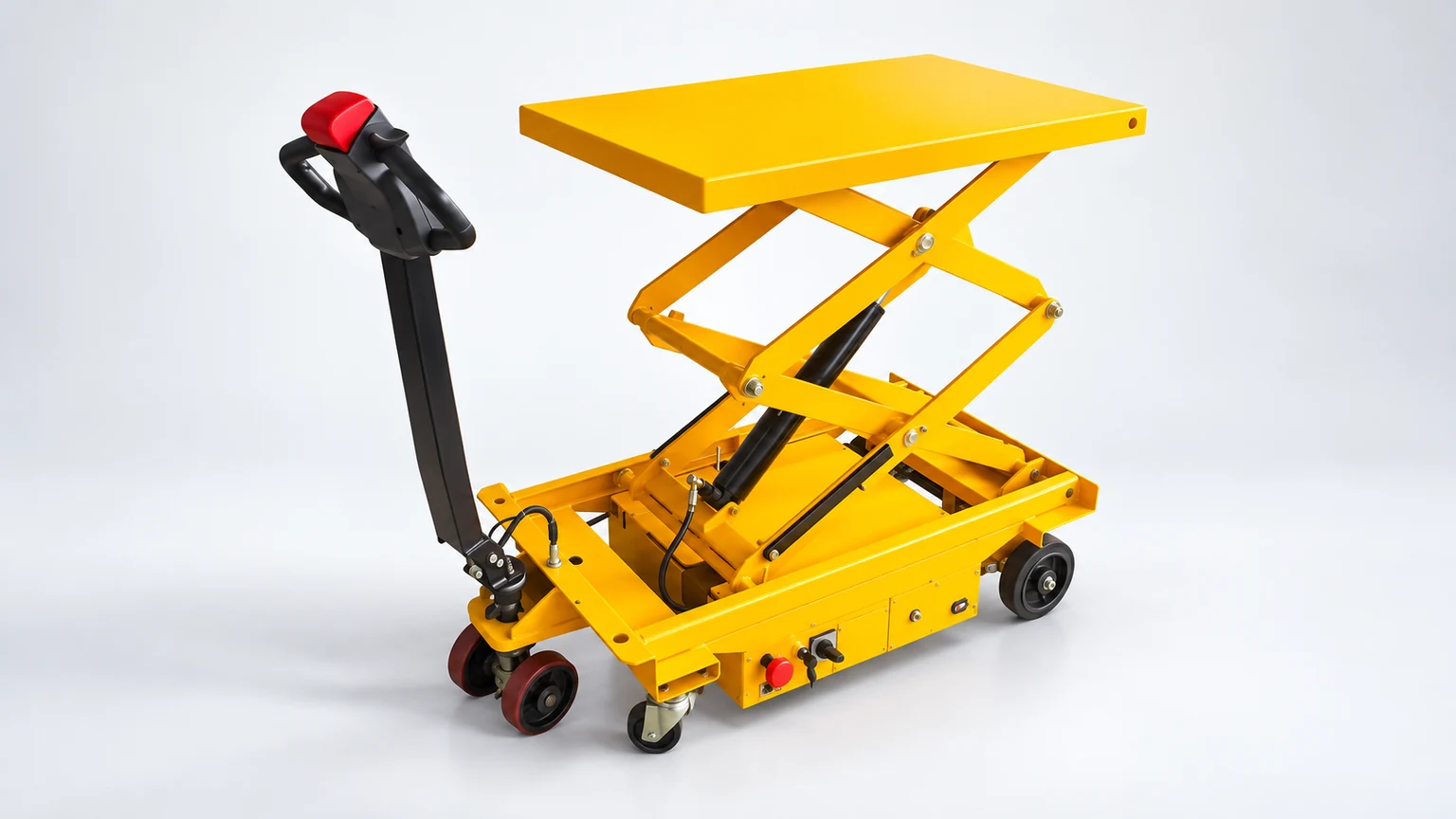

The body says 500kg and 800kg versions can use single or double scissors, while the 1,000kg version is single-scissor only. Yet its table groups a SJZ1Ⅱ code under the same heading. Keep that naming/configuration boundary unresolved until the manufacturer provides the current model matrix. The pictured double-scissor form is representative of an option, not proof of the 1,000kg configuration.

Keep the supply package explicit

Specify the workpiece footprint, distributed load, target working-height range, transfer clearances, route and expected cycling. The table lists a 24V motor voltage, two 52Ah battery entries and a 24V/8A charger output. Do not sum the battery capacities or infer wiring from those entries alone. Ask for the exact electrical schematic, battery arrangement, duty ratings, platform drawing, wheels, included documents and quotation scope. This is a material-handling reference, not a personnel-access platform approval.

Questions for the proposed product

Which complete code and configuration are proposed?

Match the exact suffix, cylinder or scissor arrangement, dimensions, electrical package where relevant, quantity and included options to a current datasheet and drawing.

Which documents define the required load and interfaces?

Request the relevant load conditions and current geometry. Preserve model, stage and working-position distinctions. A photograph, a family code or a general certificate statement is insufficient to establish application suitability.

What does the supplier include and support?

Identify the quotation and invoice issuer, included equipment and documents, delivery terms, warranty and replacement-component route. Keep stock, lead time and unresolved source differences subject to a current written offer.

From product research to a comparable request

Prepare one written equipment or component requirement. For handling equipment, state the load, working height, access and route conditions. For a battery, identify the truck and whole-pack electrical and mechanical interfaces. Compare the exact configuration, documents and support responsibilities. Keep unresolved differences visible. Existing supplier and procurement tools remain available below; browsing or following links does not itself send an enquiry.

Sources and evidence boundary

The official company pages identify Deqing Jiada Machinery Manufacturing Co., Ltd. and publish No.219 Nanjiao Road, Deqing County, Huzhou, Zhejiang, matching the existing profile. Original product bodies, parameter tables and mapped primary images support these references. This is manufacturer-published information, not an independent factory audit, load test or compliance certification. Product bodies are undated; image-folder dates are not launch dates. Current stock, authorization, certification, performance, suitability and the exact delivered configuration are not established here. Ask for current full-code drawings, load conditions and the complete written supply package. No operating, lifting, electrical-service or repair procedures are supplied.
