Jiada HLT1 manual high-lift pallet trucks

What the official reference establishes

The official HLT1 page groups four table codes: HLT1-520, HLT1-680, HLT1.5-520 and HLT1.5-680. The first two have published nominal loads of 1,000kg and the latter two 1,500kg, with fork-width entries of 520 or 680mm. The table lists an 85mm minimum fork height and an 800mm maximum fork height. These are catalogue entries for the stated configurations, not an application-specific load assessment.

Define the work before choosing a configuration

Begin with pallet construction, openings, supported load footprint, load distribution and the required working height. The scissor mechanism occupies space below the forks, unlike an ordinary low-lift pallet truck. Ask for the drawing and pallet limitations of the proposed configuration. The source also offers custom fork lengths; a modified length must be quoted with its own dimensional and load basis rather than inheriting every standard-table value.

Keep the supply package explicit

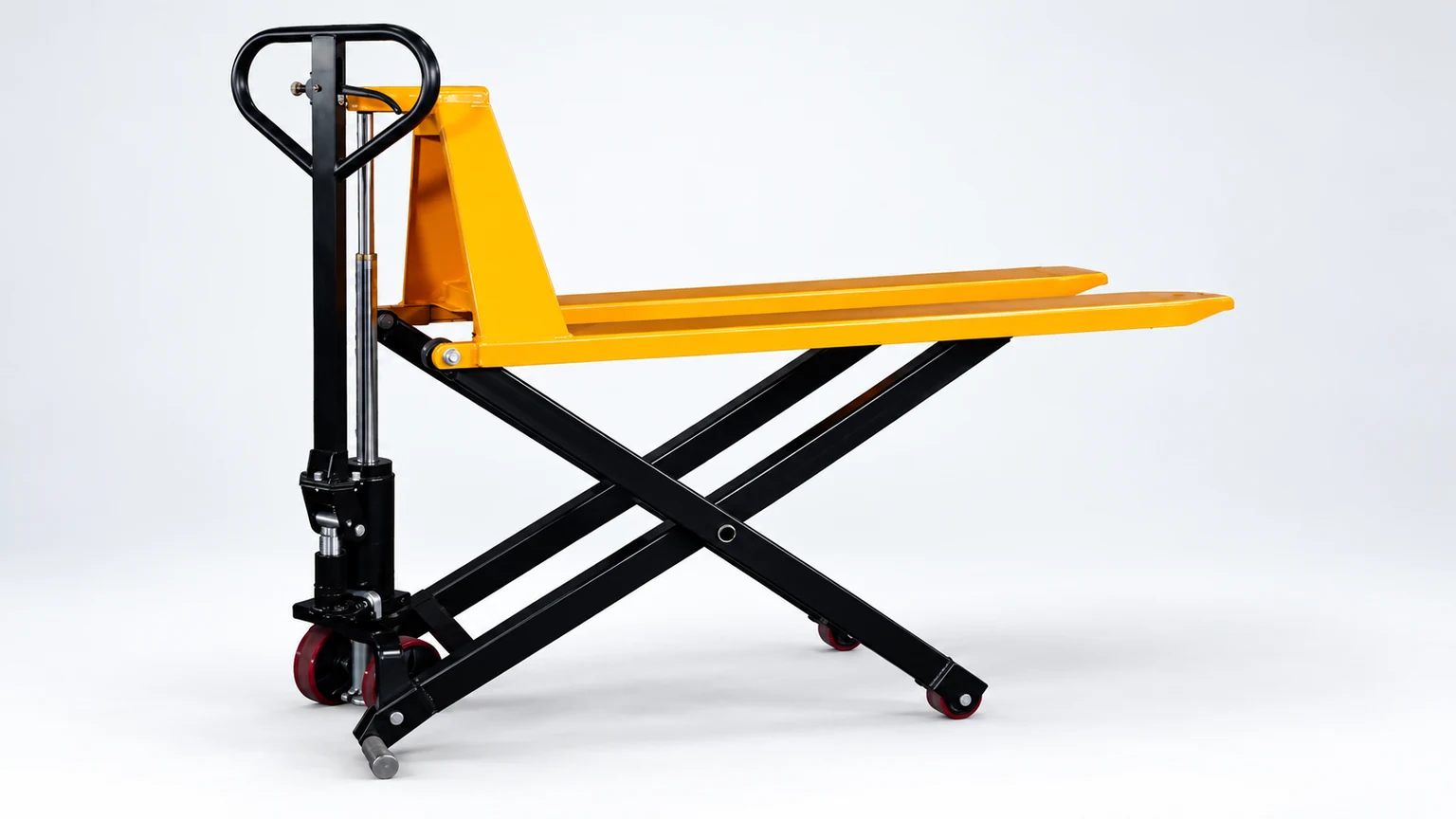

The primary image shows raised yellow forks, a black scissor undercarriage and a manual hydraulic handle. The Chinese body describes a two-stage cylinder; the English title uses double cylinders. This reference does not convert that wording into a claim of two parallel cylinders. Request the cylinder/parts drawing, exact fork package, wheel material, supplied handle, documentation and support route. Source safety and certificate statements are not independently verified here.

Questions for the proposed product

Which complete code and configuration are proposed?

Match the exact suffix, cylinder or scissor arrangement, dimensions, electrical package where relevant, quantity and included options to a current datasheet and drawing.

Which documents define the required load and interfaces?

Request the relevant load conditions and current geometry. Preserve model, stage and working-position distinctions. A photograph, a family code or a general certificate statement is insufficient to establish application suitability.

What does the supplier include and support?

Identify the quotation and invoice issuer, included equipment and documents, delivery terms, warranty and replacement-component route. Keep stock, lead time and unresolved source differences subject to a current written offer.

From product research to a comparable request

Prepare one written equipment or component requirement. For handling equipment, state the load, working height, access and route conditions. For a battery, identify the truck and whole-pack electrical and mechanical interfaces. Compare the exact configuration, documents and support responsibilities. Keep unresolved differences visible. Existing supplier and procurement tools remain available below; browsing or following links does not itself send an enquiry.

Sources and evidence boundary

The official company pages identify Deqing Jiada Machinery Manufacturing Co., Ltd. and publish No.219 Nanjiao Road, Deqing County, Huzhou, Zhejiang, matching the existing profile. Original product bodies, parameter tables and mapped primary images support these references. This is manufacturer-published information, not an independent factory audit, load test or compliance certification. Product bodies are undated; image-folder dates are not launch dates. Current stock, authorization, certification, performance, suitability and the exact delivered configuration are not established here. Ask for current full-code drawings, load conditions and the complete written supply package. No operating, lifting, electrical-service or repair procedures are supplied.
