Jiada DGBZ1.5C powered high-lift pallet truck

What the official reference establishes

The official DGBZ1.5C page describes powered travel and powered lifting. Its table separates a 1,500kg middle-cylinder entry at a 750mm load centre from a 1,000kg piston-rod entry at a 600mm load centre. Therefore, the 1.5C code must not become a blanket 1.5-tonne rating throughout every lift condition. A current stage-by-stage load diagram is required for the offered unit.

Define the work before choosing a configuration

Record pallet geometry, load centre, desired working height, travel route, wheel contact and clearance requirements. The body mentions adjustable travel speed of 2–4km/h, while the table gives 3km/h maximum forward/reverse speed. Its prose and table also use different unladen lift-time entries. These values are preserved as source differences; this page does not choose a convenient speed or timing value and call it independently tested performance.

Keep the supply package explicit

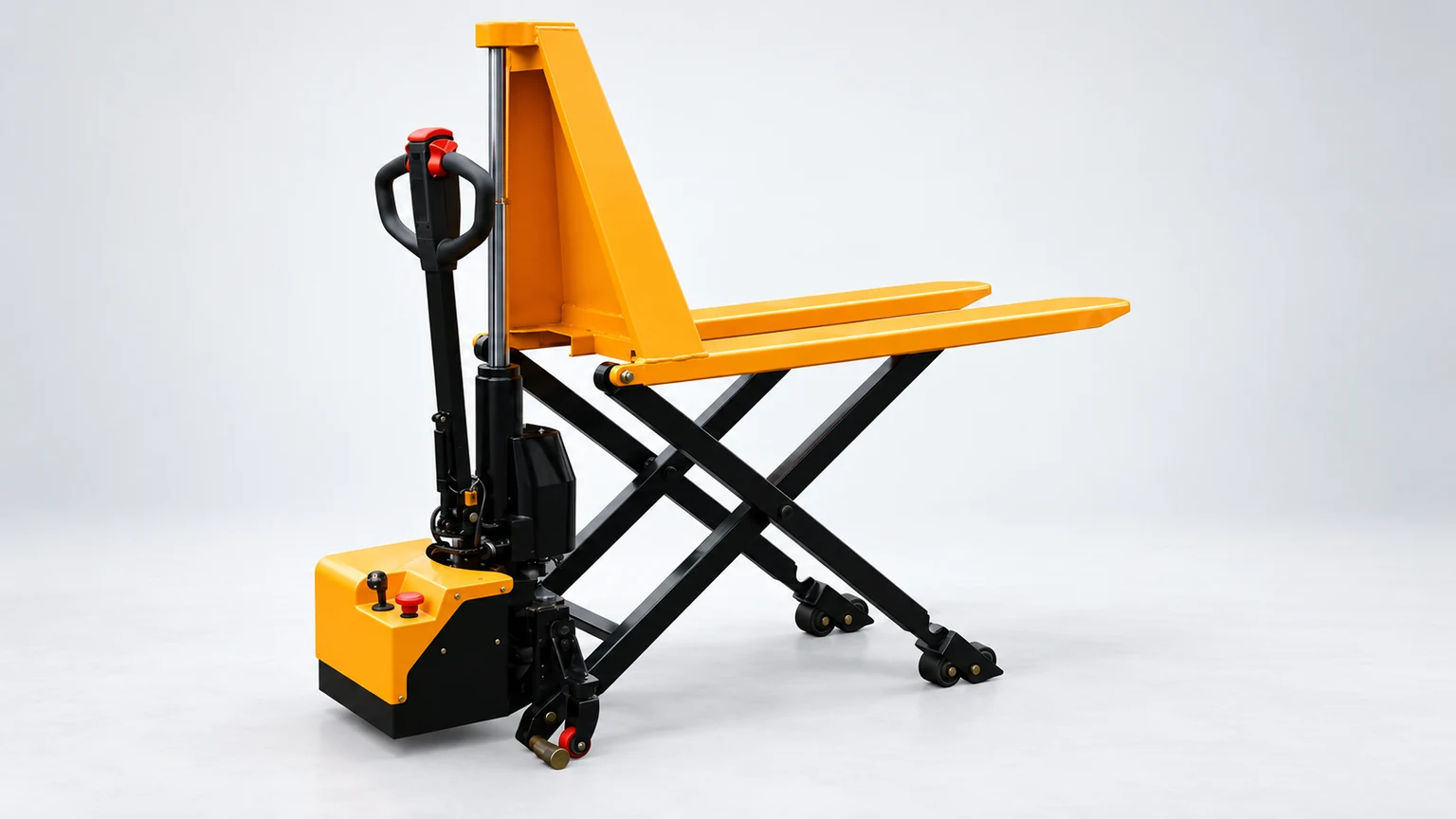

The source-based presentation shows yellow forks, a scissor support, powered drive housing, lift cylinder and control tiller. The table lists a 24V/20Ah lithium-battery entry and a 24V/800W lift-motor entry. Confirm the current battery, charger, drive and control package, exact fork length, wheel set and documents. Custom-length options and source certificate claims do not prove that every pictured option is supplied or approved for the buyer’s application.

Questions for the proposed product

Which complete code and configuration are proposed?

Match the exact suffix, cylinder or scissor arrangement, dimensions, electrical package where relevant, quantity and included options to a current datasheet and drawing.

Which documents define the required load and interfaces?

Request the relevant load conditions and current geometry. Preserve model, stage and working-position distinctions. A photograph, a family code or a general certificate statement is insufficient to establish application suitability.

What does the supplier include and support?

Identify the quotation and invoice issuer, included equipment and documents, delivery terms, warranty and replacement-component route. Keep stock, lead time and unresolved source differences subject to a current written offer.

From product research to a comparable request

Prepare one written equipment or component requirement. For handling equipment, state the load, working height, access and route conditions. For a battery, identify the truck and whole-pack electrical and mechanical interfaces. Compare the exact configuration, documents and support responsibilities. Keep unresolved differences visible. Existing supplier and procurement tools remain available below; browsing or following links does not itself send an enquiry.

Sources and evidence boundary

The official company pages identify Deqing Jiada Machinery Manufacturing Co., Ltd. and publish No.219 Nanjiao Road, Deqing County, Huzhou, Zhejiang, matching the existing profile. Original product bodies, parameter tables and mapped primary images support these references. This is manufacturer-published information, not an independent factory audit, load test or compliance certification. Product bodies are undated; image-folder dates are not launch dates. Current stock, authorization, certification, performance, suitability and the exact delivered configuration are not established here. Ask for current full-code drawings, load conditions and the complete written supply package. No operating, lifting, electrical-service or repair procedures are supplied.
