Winner WDC500 mechanical drum trolley

What the official reference establishes

The WDC500 detail identifies a mechanical drum trolley and provides a dedicated photograph and small parameter sheet. That sheet lists WDC500 with reference 050105572, nominal 500 kg, a 55-gallon(210-litre) drum entry, diameter 572 mm, height 915 mm and net mass 17 kg. The volume notation is retained as the supplier prints it; no conversion, drum approval or independently verified load capability is claimed.

Define the work before choosing a configuration

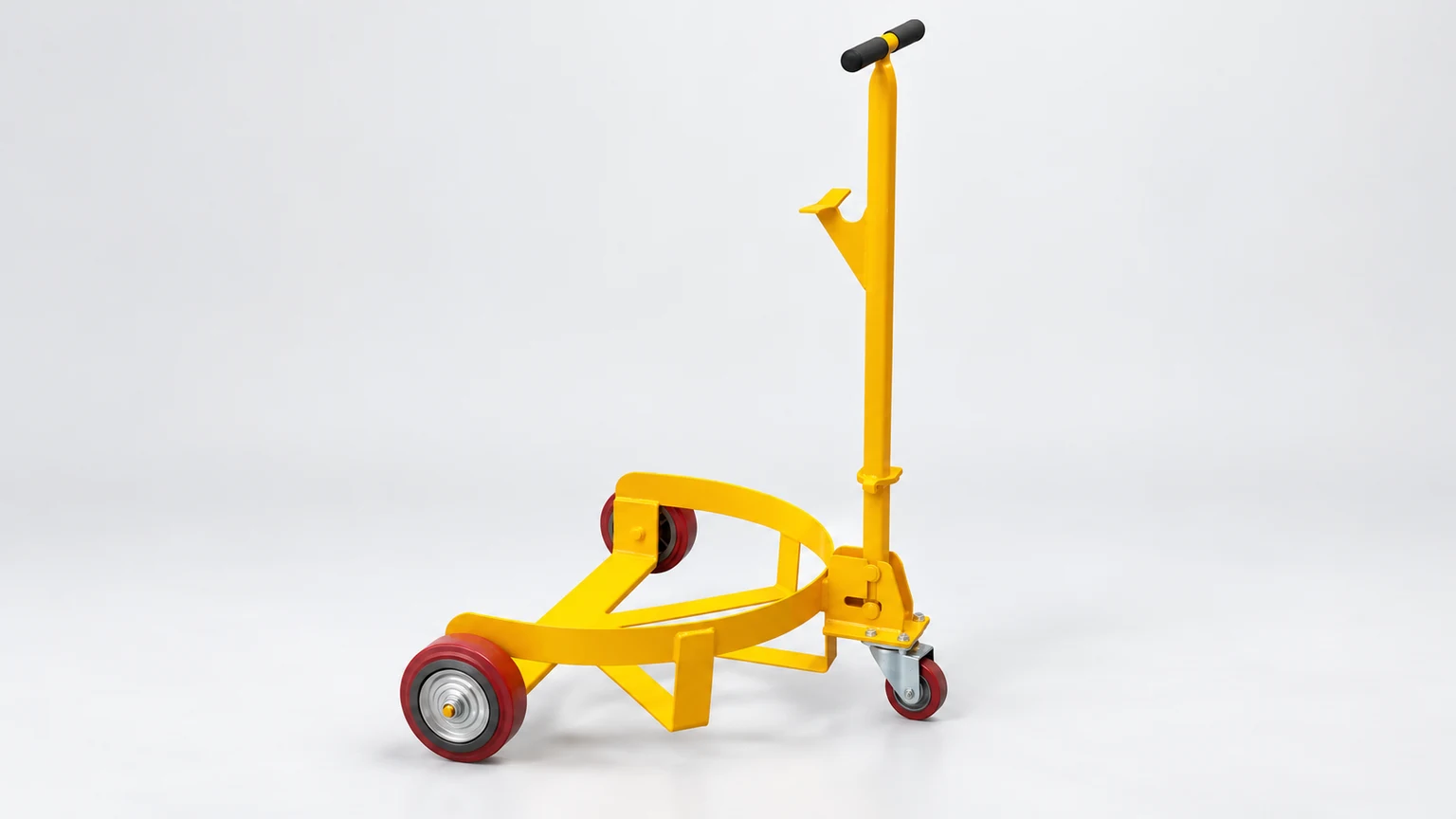

The source photograph shows a yellow cradle, two main wheels, a small rear caster and an upright handle with an upper engagement feature. It contains no powered lifting mast or pallet forks. This form belongs to drum transport and should not be confused with a forklift attachment or powered drum stacker. Ask for an actual assembly drawing and the supported drum profile, rim and retention requirements.

Keep the supply package explicit

Specify drum material, dimensions, rim construction, contents and total filled mass when preparing the request. A nominal capacity or a familiar drum volume does not establish engagement with a particular container. Confirm floor and route conditions, included retaining parts, permitted use and required documentation with the responsible supplier. No instructions for tilting, gripping, lifting or moving a loaded drum are provided here.

Questions for the proposed product

Which complete variant is being quoted?

State the exact model, suffix and configuration. Attach a current drawing and datasheet identifying the dimensions, load basis, wheels, controls and supplied accessories. Keep unresolved catalogue entries explicit.

What supports the intended application?

Provide the actual load or drum identity, handling task, required heights, floor/route and site restrictions. Ask the responsible supplier to confirm the configuration with appropriate application and capacity documents.

What is included in the offer?

Confirm current availability, delivery, documentation, warranty and contracting entity. For powered products, identify the battery, charger and interface specification. A website listing does not establish stock, certification, authorization or suitability.

From product research to a comparable request

Prepare one written handling requirement around the actual load, pallet or drum identity, required heights, aisle and floor limits, energy source and documentation. Compare the complete offered configuration and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The company-controlled website header identifies Zhejiang Jinhua Wenrui Mechanical and Electrical Co., Ltd.; the About body also uses Zhejiang Wenrui Mechanical and Electrical (Manufacturing) wording. These are published website names, not a legal-registration audit. The contact body gives No. 321 Provincial Road 03, Fucun Town, Jinhua, Zhejiang. Product bodies, mapped original photos and image-based tables were read. The site does not state a product publication date; image-path timestamps are not current specification dates. Company-wide certification and manufacturing claims have not been independently audited. Confirm the current contracting entity and complete documents. Images are source-based presentations, not stock, dimensional, capacity or test evidence. No operating or repair procedures are supplied.
