Shanye CBD20X walk-behind electric pallet truck

What the official reference establishes

The company-controlled CBD20X detail identifies electric lifting and walking operation. Its table lists a nominal 2000 kg load at 600 mm load centre, fork outer widths of 560/685 mm and fork dimensions of 1150×160×50 or 1220×160×50 mm. It lists 85 mm minimum and 200 mm maximum fork height. The separate 115 mm lift entry should not be relabelled a stacking height.

Define the work before choosing a configuration

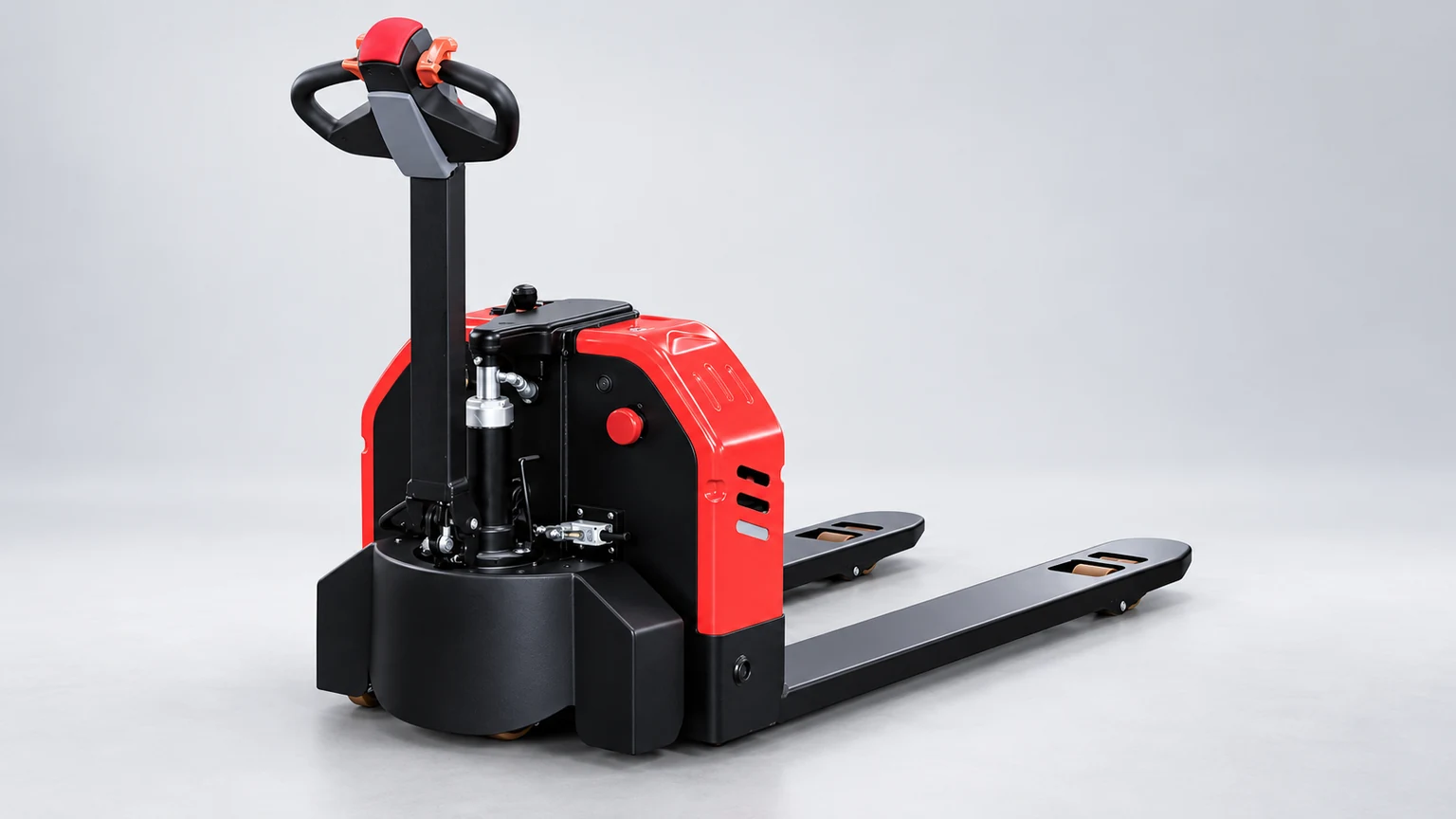

The visible source image shows a compact powered body, walking tiller and low forks, without a stacking mast. For a comparable request, describe pallet geometry, load centre, fork-entry direction, route and charging arrangements. Keep CBD20X distinct from CBD20, CBD30X or another supplier’s similarly named truck; a shared capacity or code fragment does not prove that components or configurations are equivalent.

Keep the supply package explicit

The electrical table prints 2×12V/100Ah for the battery and 24V12A for the charger. Treat those entries as the source’s notation and request a current matched package, chemistry, interface and charging requirements. The page contains unclear translated symbols, including a gradeability entry rendered W4; no corrected slope limit is invented. Controller-origin, reliability, low-voltage protection and life claims are not independently verified or repeated as procurement guarantees.

Questions for the proposed product

Which complete configuration is proposed?

State the exact series, suffix, load and height variant, fork and support geometry, wheels, controls and included accessories. Supply the current drawing and datasheet for the quoted assembly.

What establishes the application match?

Provide the actual load and pallet information, requested height, travel route and site constraints. Require the responsible supplier to confirm the proposed configuration and applicable capacity and use documentation.

What is included in the supply package?

Confirm current availability, lead time, contracting entity, warranty and required documents. Clarify every optional accessory; powered products also need a matched battery and charger specification. No stock, authorization or certification is assumed from a website listing.

From product research to a comparable request

Prepare one written handling requirement around the actual load, pallet or drum identity, required heights, aisle and floor limits, energy source and documentation. Compare the complete offered configuration and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The current company-controlled website header and footer identify Zhejiang Lanxi Shanye Machinery Co., Ltd. and publish Xiangxi Industrial Zone, Lanxi, Zhejiang. The contact body and four individual product bodies, parameter tables and original images were read in a normal browser; direct request-client403 responses are recorded as an access limitation, not product evidence. Company identity is website-supported, not a legal-registration or factory audit. Publication dates are not stated for the selected products, and photo-path dates do not prove current specifications. Confirm the current contracting entity, exact configuration and written documents. No stock, authorization, certification, safety or fitment promise is made. Images explain equipment form, not performance or a supplied assembly.
