Shanye SYP-HS single-cylinder scissor pallet truck

What the official reference establishes

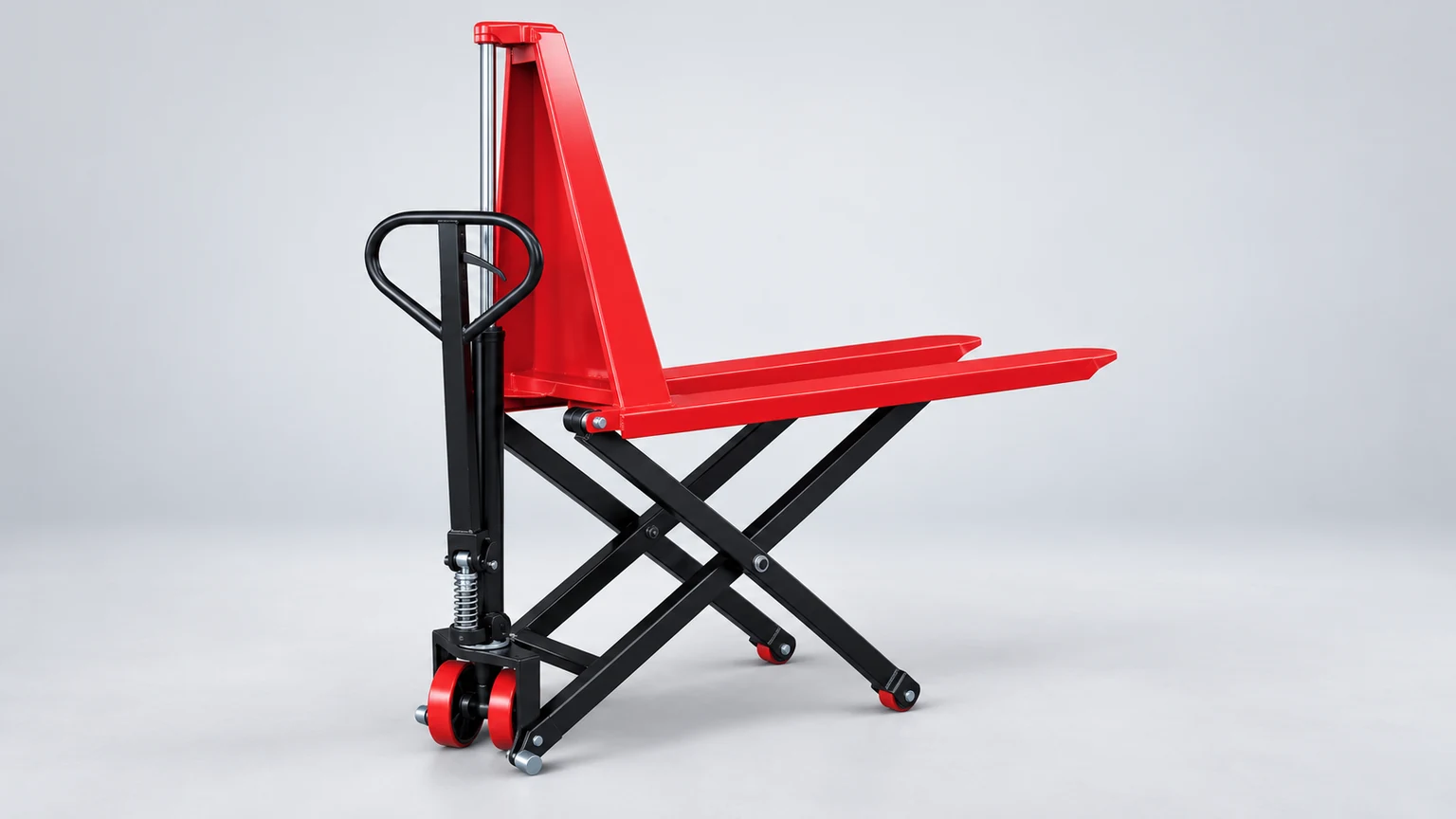

The official SYP-HS detail identifies the single-cylinder manual high-lift truck, with a scissor mechanism visible below the raised forks. Its table lists 85 mm minimum and 800 mm maximum fork height, 1150 mm working fork length and 540/685 mm fork outer widths. The source presents this as a pallet-truck and elevating-table combination, not as a conventional mast stacker.

Define the work before choosing a configuration

There is a scope difference in the source: the description discusses a 1000 kg load, while the parameter table contains both 1000 and 1500 kg columns. Neither column is adopted as the unconditional rating of every SYP-HS assembly. Ask the supplier to identify the exact load variant, fork width, scissor and cylinder configuration, drawing and current capacity documentation in the offer.

Keep the supply package explicit

Record the pallet base and openings, load size and distribution, requested working height, floor and work area. Ask for the permitted movement and use conditions at the proposed height rather than assuming that every raised position is a transport setting. The SYP-HD dual-cylinder and SDYP-HS powered references remain distinct; similar names do not establish equivalence. No fatigue-reduction, safety, personnel-access or stability guarantee is inferred from the catalogue description or illustration.

Questions for the proposed product

Which complete configuration is proposed?

State the exact series, suffix, load and height variant, fork and support geometry, wheels, controls and included accessories. Supply the current drawing and datasheet for the quoted assembly.

What establishes the application match?

Provide the actual load and pallet information, requested height, travel route and site constraints. Require the responsible supplier to confirm the proposed configuration and applicable capacity and use documentation.

What is included in the supply package?

Confirm current availability, lead time, contracting entity, warranty and required documents. Clarify every optional accessory; powered products also need a matched battery and charger specification. No stock, authorization or certification is assumed from a website listing.

From product research to a comparable request

Prepare one written handling requirement around the actual load, pallet or drum identity, required heights, aisle and floor limits, energy source and documentation. Compare the complete offered configuration and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The current company-controlled website header and footer identify Zhejiang Lanxi Shanye Machinery Co., Ltd. and publish Xiangxi Industrial Zone, Lanxi, Zhejiang. The contact body and four individual product bodies, parameter tables and original images were read in a normal browser; direct request-client403 responses are recorded as an access limitation, not product evidence. Company identity is website-supported, not a legal-registration or factory audit. Publication dates are not stated for the selected products, and photo-path dates do not prove current specifications. Confirm the current contracting entity, exact configuration and written documents. No stock, authorization, certification, safety or fitment promise is made. Images explain equipment form, not performance or a supplied assembly.
