Longhe E-series rotator

What the official reference establishes

Longhe describes the E-series as a hydraulically driven rotating attachment used where the load or container must change orientation. The current technical drawing lists multiple XZQ codes with different carriage widths, mounting classes, masses and geometry. An E-series name is therefore a catalogue starting point, not a single interchangeable assembly. The separate Rotator 50E listing is not assumed to be an alias of every E-series entry.

Define the work before choosing a configuration

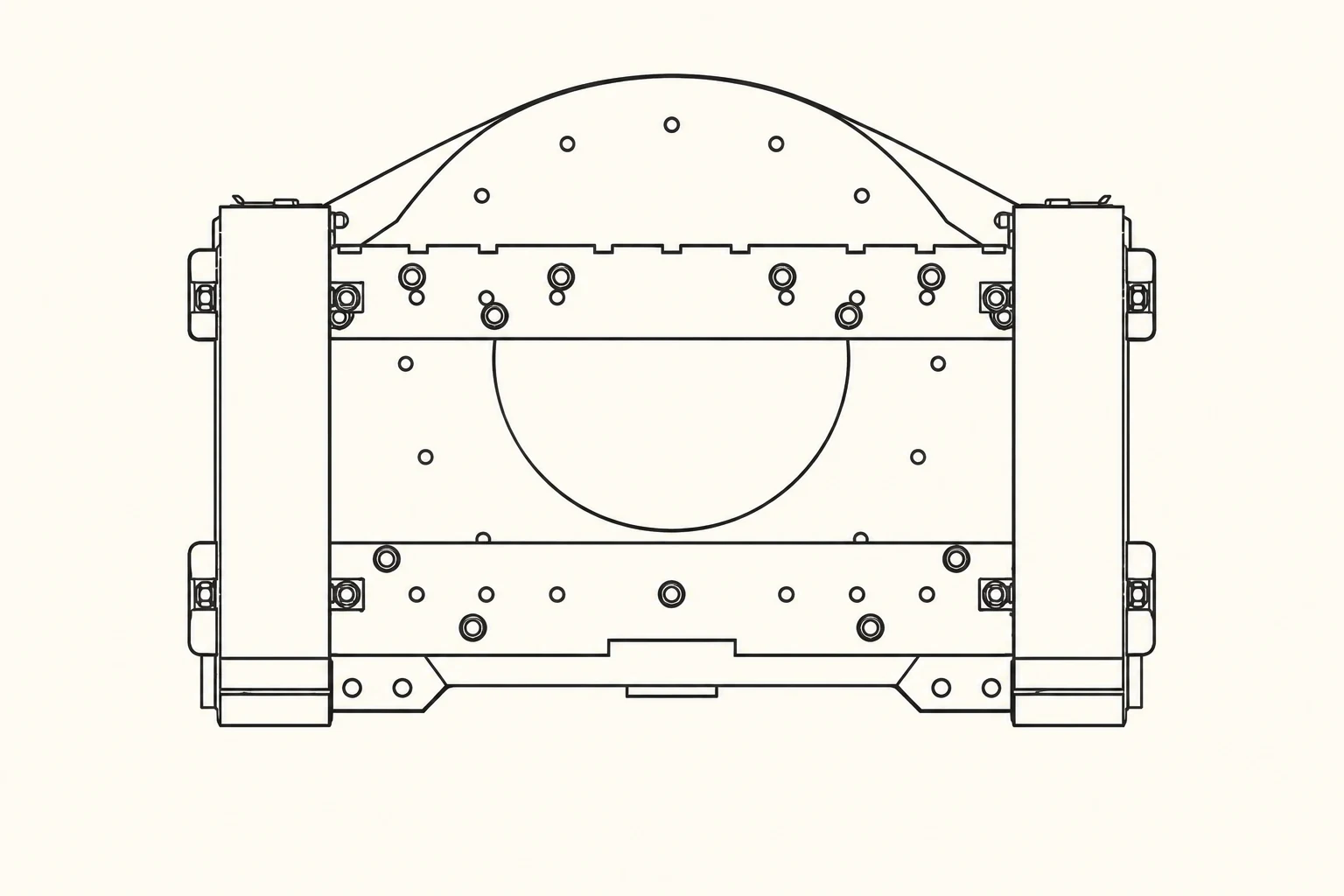

The product summary discusses use with a sideshift attachment conditionally. That does not establish that lateral sideshift is built into every E-series rotator. Keep it as a configuration question. The specification image also labels the forks as excluded, with special forks available on request. The drawing is used here to explain the general carriage and rotation structure; it is not an approved dimensional drawing or evidence of a particular supplied build.

Keep the supply package explicit

Define the container dimensions, load distribution, planned orientation changes, required retention arrangement and truck identity. Ask the supplier to identify the exact rotator model, included fork or carrier equipment, hydraulic interfaces and relevant load documentation. Do not infer a combined truck rating from an attachment capacity column. Application-specific retention and operational approval require the responsible supplier and equipment authority; no tipping or operating instructions are provided here.

Questions for the proposed product

Does the quotation include sideshift?

Ask whether it is integrated, separately supplied or absent. The general source wording is conditional, so sideshift should not be assumed from the E-series name.

Which forks or carrier are included?

The source drawing excludes forks. Require the offered fork or container interface to be identified separately, with its current documents and responsibility for the complete combination.

Which model revision supports a later parts order?

Preserve the full XZQ reference, attachment serial and label photographs. Similar rotator appearance does not establish seals, bearings or hydraulic component interchangeability.

From product research to a comparable request

Prepare a written attachment requirement around the actual load, working envelope, route and duty pattern. Request a full series/model designation and current configuration documents. Compare the attachment, carriage interface, hydraulic functions, forks or arms, accessories, documentation, delivery and support separately. A shared short code, similar appearance or catalogue capacity class does not establish that two offers are equivalent.

Sources and evidence boundary

The current company-controlled Longhe website identifies Longhe Intelligent Equipment Manufacturing Co., Ltd. in Longyan High-tech Zone, Fujian, consistent with this supplier record. The redesigned product pages and their mapped images were read directly. Legacy product URLs now redirect to the homepage; their old tables are not silently reused. The current product pages are undated, and image upload paths are not launch dates. These sources establish published identity and product scope, not independently tested performance. Drawings and illustrations do not establish exact supplied geometry, stock, authorization, certification, safety or compatibility. Obtain the current model documents and written selection basis for the proposed attachment and truck combination. This is purchasing preparation, not installation, hydraulic adjustment, operating or return-to-service instruction.
