Ningbo Zhongtian supplier profile / Attachment cylinders
Supplier catalogue product referenceZhongtian Forklift attachment-cylinder family
A separate supplier attachment-cylinder family. One slim double-ended example illustrates the category without identifying a clamp, sideshifter or rotator application.
Identify the enquiry scope
- Source category
- Forklift and logistics machinery → attachment cylinders
- Visible reference form
- Plain double-ended rods; two perforated mounting tabs
- Unverified application
- No named clamp, sideshifter, rotator or truck match
- Matching basis required
- Attachment identity, installed reference and drawing
Reviewed 28 October 2026. Source dating: Official detail body and mapped source gallery reviewed 28 October 2026. Image paths are not verified launch or current technical-revision dates.. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes

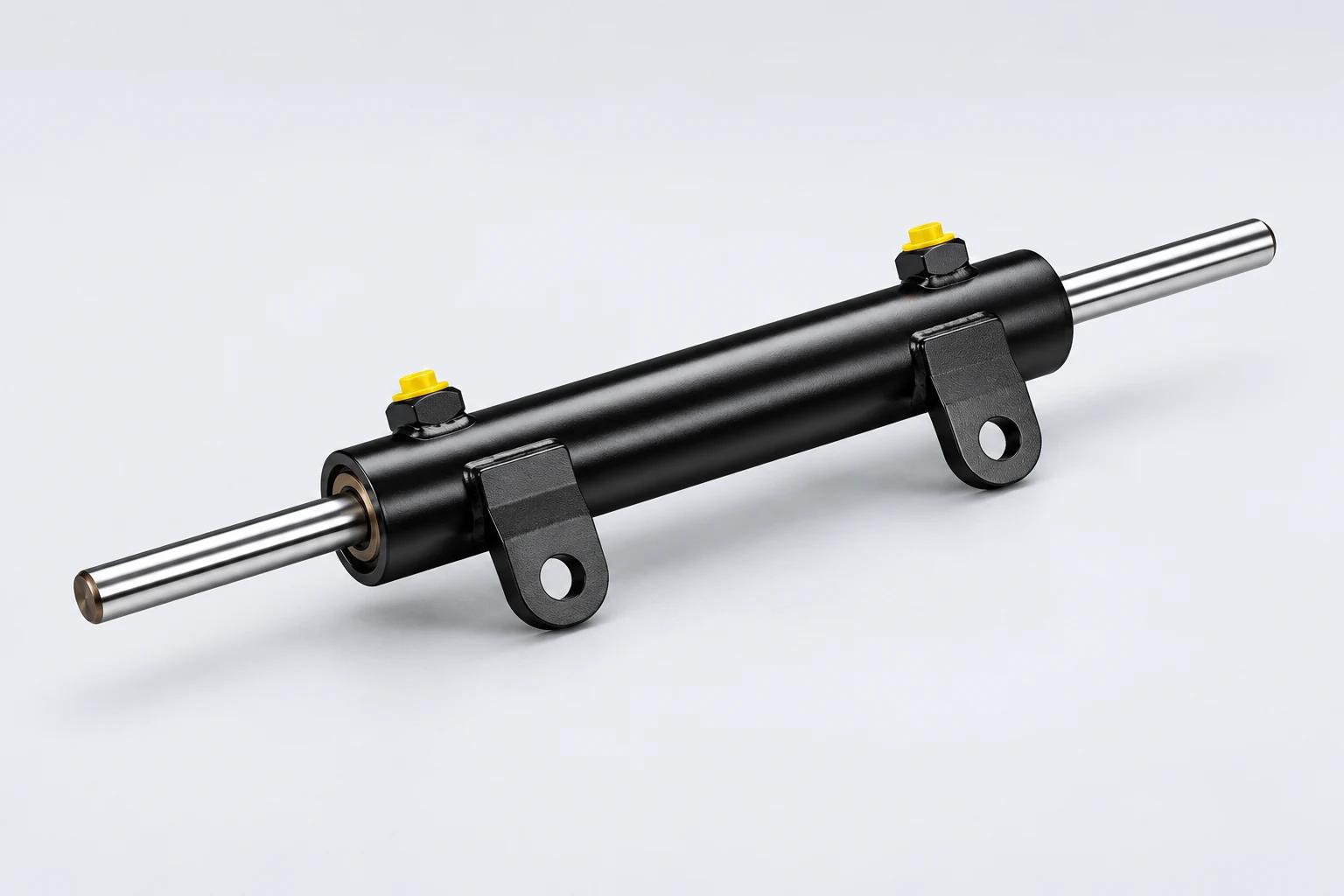

Zhongtian’s catalogue gives attachment cylinders a dedicated page, separate from steering and reach cylinders. Its primary photograph shows a slim black barrel, straight polished rods extending at both ends, two downward mounting tabs with holes and capped ports. Other gallery images show visibly different rod and mount arrangements. These are category examples rather than a bill of materials, confirmed paired set or published model range.
Keep the reference and interfaces together
Start with the attachment maker, model, serial and installed cylinder reference, then identify the function from the attachment documentation. The category title alone does not establish whether a pictured example operates a clamp, sideshift, fork positioning, rotation or another mechanism. Do not reuse a steering-cylinder reference solely because both images show double-ended rods. Similar rod form does not establish equivalent mounts, stroke, circuits or loads.
Keep the supply package explicit
Have the supplier reconcile the controlled cylinder drawing with the attachment specification, mounting tabs, ports and operating conditions. Identify the included fittings and any separately specified load-holding or control elements in the actual proposal; none is inferred from this image. An attachment load rating, retention capability, compatibility, current availability or safe operating outcome cannot be derived from a cylinder category. The accepted drawing, quotation and required technical review define the supply scope.
Questions for the proposed product
What identifies the required cylinder?
Provide the truck or attachment maker, full model and serial identity, installed assembly reference, function and available controlled drawing. Preserve the complete component markings and drawing revision. A supplier category name or similar outline is not an interchange reference.
Which interfaces need confirmation?
Use the existing engineering record to identify bore, rod, stroke, closed and open lengths, mounting centres, pin or bearing interfaces, port threads and orientation. Ask the responsible supplier to reconcile the complete drawing with working conditions, fluid and seal requirements. Do not infer measurements or pressure from the picture.
What should the written offer include?
Clarify complete cylinder versus a separately identified component or seal kit, quantity, destination, condition and origin, approved drawing, agreed inspection documents, delivery terms and warranty. A directory link or click does not send or constitute an effective enquiry. Installation and acceptance remain subject to the responsible technical parties.
From product research to a comparable request
Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The company-controlled website identifies Ningbo Zhongtian United Electromechanical at No. 103 Siming East Road, Yinjiang, Haishu, Ningbo. Its About page also names Ningbo Zhongtian Haide Hydraulic; the legal relationship and quoting entity require independent confirmation. Four dedicated function pages and their source galleries were reviewed. They publish category associations and visible forms, not model codes, controlled drawings or technical parameter tables. Certification, OEM cooperation, high-pressure, long-life, stock and suitability claims are not independently verified. Illustrations explain one family example, not a supplied kit, measured specification or approved replacement.
