Zhongtian Forklift tilt-cylinder family

What the official reference establishes

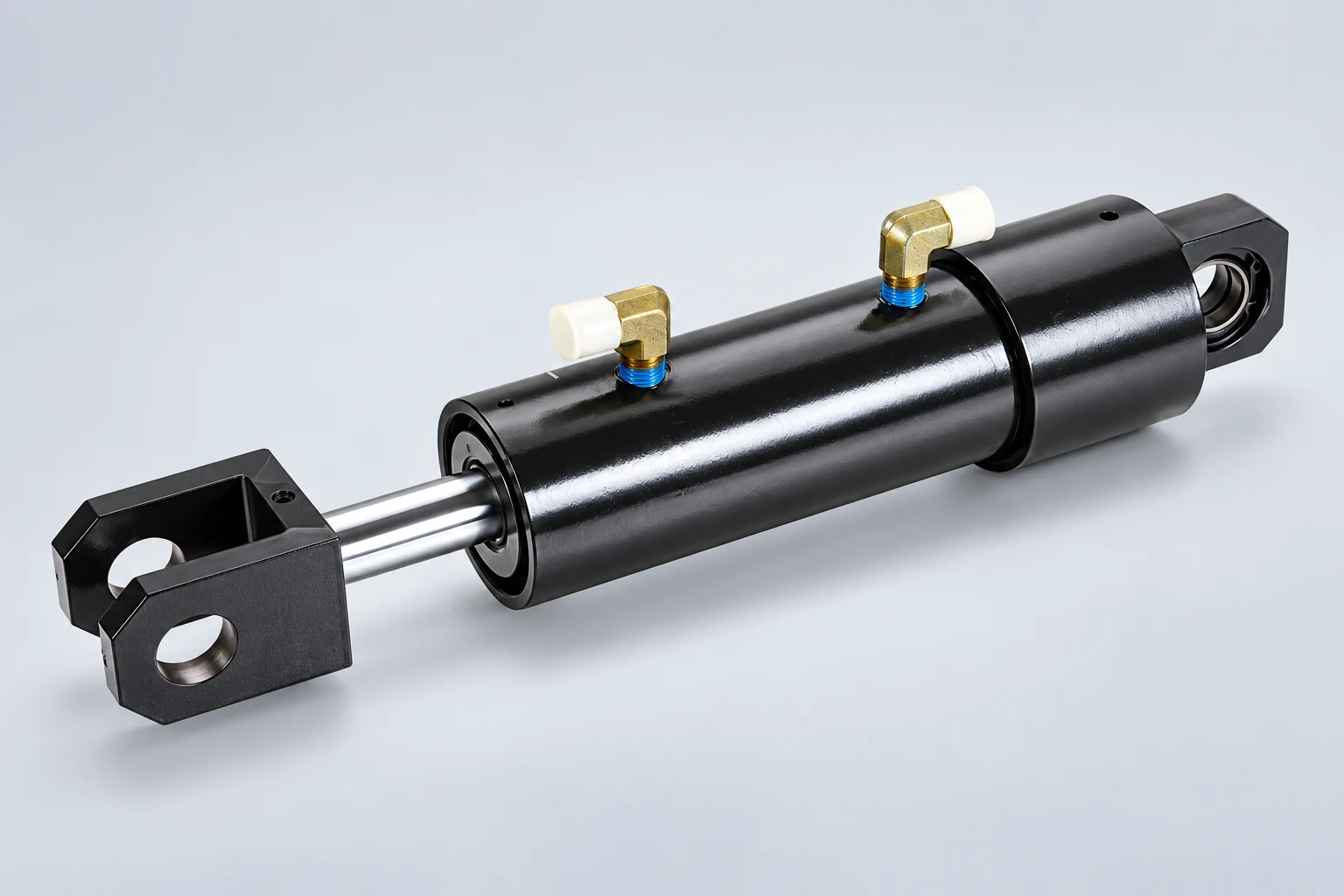

Zhongtian’s official catalogue separates tilt cylinders from lift, steering and attachment cylinders. The dedicated primary photograph shows a short black barrel, an exposed polished rod, a two-ear clevis at the rod end, a rear mounting eye and two capped elbow fittings. These visible features explain the illustrated form only. The gallery also contains other mounting forms, but no individual model-to-image schedule or dimensional specification is published in the inspected body.

Keep the reference and interfaces together

For a replacement enquiry, retain the truck model, serial range and installed cylinder assembly reference. Where a machine uses paired cylinders, identify the actual position and each installed reference from its documentation instead of assuming a left/right match. Closed and open mounting-centre lengths, stroke, pin interfaces and port orientation belong in the drawing comparison. A clevis that looks similar may still have a different width, bearing or pin specification.

Keep the supply package explicit

Ask which complete assembly the quotation covers and whether the pictured elbows, bushes, pins or other accessories are included. Confirm the application conditions, port details, permitted articulation and current drawing through the responsible supplier. The photograph does not prove bore, rod diameter, working pressure, material, seal compatibility or the attainable mast tilt angle on an installed truck. Its category association is not an OEM authorization or evidence that it replaces any Linde, Toyota or other brand part.

Questions for the proposed product

What identifies the required cylinder?

Provide the truck or attachment maker, full model and serial identity, installed assembly reference, function and available controlled drawing. Preserve the complete component markings and drawing revision. A supplier category name or similar outline is not an interchange reference.

Which interfaces need confirmation?

Use the existing engineering record to identify bore, rod, stroke, closed and open lengths, mounting centres, pin or bearing interfaces, port threads and orientation. Ask the responsible supplier to reconcile the complete drawing with working conditions, fluid and seal requirements. Do not infer measurements or pressure from the picture.

What should the written offer include?

Clarify complete cylinder versus a separately identified component or seal kit, quantity, destination, condition and origin, approved drawing, agreed inspection documents, delivery terms and warranty. A directory link or click does not send or constitute an effective enquiry. Installation and acceptance remain subject to the responsible technical parties.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The company-controlled website identifies Ningbo Zhongtian United Electromechanical at No. 103 Siming East Road, Yinjiang, Haishu, Ningbo. Its About page also names Ningbo Zhongtian Haide Hydraulic; the legal relationship and quoting entity require independent confirmation. Four dedicated function pages and their source galleries were reviewed. They publish category associations and visible forms, not model codes, controlled drawings or technical parameter tables. Certification, OEM cooperation, high-pressure, long-life, stock and suitability claims are not independently verified. Illustrations explain one family example, not a supplied kit, measured specification or approved replacement.
