Zhongtian Forklift lift-cylinder family

What the official reference establishes

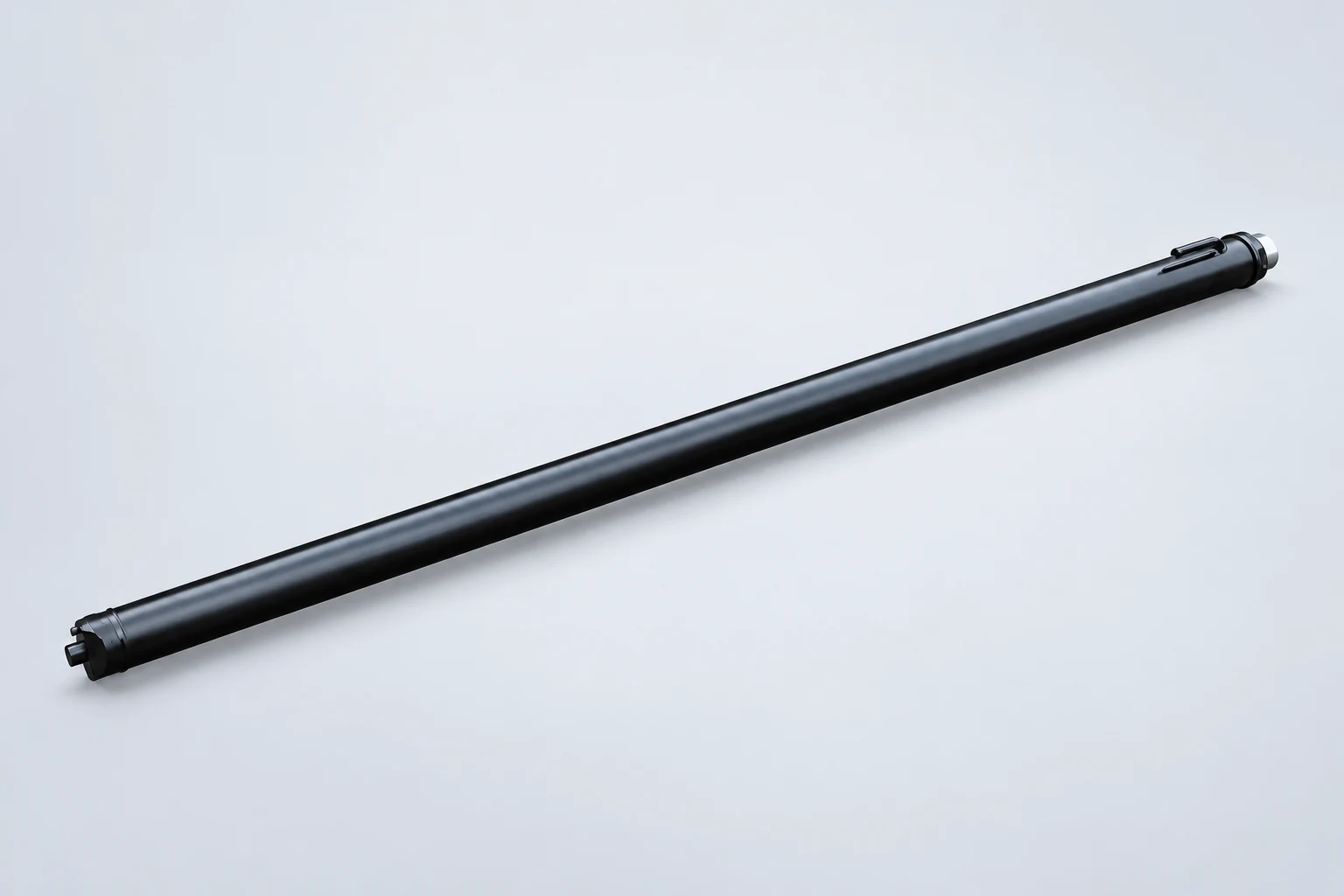

The official forklift and logistics catalogue gives lift cylinders their own detail page. Its gallery includes long, slender assemblies with differing end forms and mounting details. The independent illustration follows the first dedicated image as one visible example. Other gallery views are alternatives within the supplier category; they are not counted as verified model numbers or a supplied set. No model code, controlled dimensional drawing or product-specific pressure table is published in the inspected detail body.

Keep the reference and interfaces together

Begin with the installed mast assembly, truck identity and cylinder reference. Identify whether the requirement concerns a particular lift-stage or free-lift position using the existing manufacturer record; the broad lift-cylinder label does not resolve that position. Keep cylinder stroke, mast travel and truck lifting capacity separate. None can be calculated reliably from this photograph or the cylinder length visible in a gallery view.

Keep the supply package explicit

Ask the supplier to identify the offered drawing revision, stroke, retracted length, mounting arrangement, ports and any associated external lines or fittings. Agree the required operating conditions and inspection documents from the engineering specification. The gallery includes visible variations, so the quotation should name one exact assembly. A long black tube does not establish a single-acting design, a forklift brand match, a seal-kit reference or a load rating. No repair or installation procedure is supplied.

Questions for the proposed product

What identifies the required cylinder?

Provide the truck or attachment maker, full model and serial identity, installed assembly reference, function and available controlled drawing. Preserve the complete component markings and drawing revision. A supplier category name or similar outline is not an interchange reference.

Which interfaces need confirmation?

Use the existing engineering record to identify bore, rod, stroke, closed and open lengths, mounting centres, pin or bearing interfaces, port threads and orientation. Ask the responsible supplier to reconcile the complete drawing with working conditions, fluid and seal requirements. Do not infer measurements or pressure from the picture.

What should the written offer include?

Clarify complete cylinder versus a separately identified component or seal kit, quantity, destination, condition and origin, approved drawing, agreed inspection documents, delivery terms and warranty. A directory link or click does not send or constitute an effective enquiry. Installation and acceptance remain subject to the responsible technical parties.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The company-controlled website identifies Ningbo Zhongtian United Electromechanical at No. 103 Siming East Road, Yinjiang, Haishu, Ningbo. Its About page also names Ningbo Zhongtian Haide Hydraulic; the legal relationship and quoting entity require independent confirmation. Four dedicated function pages and their source galleries were reviewed. They publish category associations and visible forms, not model codes, controlled drawings or technical parameter tables. Certification, OEM cooperation, high-pressure, long-life, stock and suitability claims are not independently verified. Illustrations explain one family example, not a supplied kit, measured specification or approved replacement.
