HELI Shaoxing supplier profile / CPD10SQ-AGV1A1LI
Supplier catalogue product referenceHELI CPD10SQ omnidirectional counterbalance AGV
A dedicated counterbalance AGV reference for constrained material-transfer layouts. Rated load, lift height and residual capacity must remain separate.
Identify the enquiry scope
- Complete supplier code
- CPD10SQ-AGV1A1LI
- Separate catalogue entries
- 1000 kg rated load; 4000 mm maximum lift
- Reference battery / vehicle mass
- 24 V / 272 Ah; 2450 kg
- Stacking-width basis
- 2840 mm for 1200 × 1200 mm pallet only

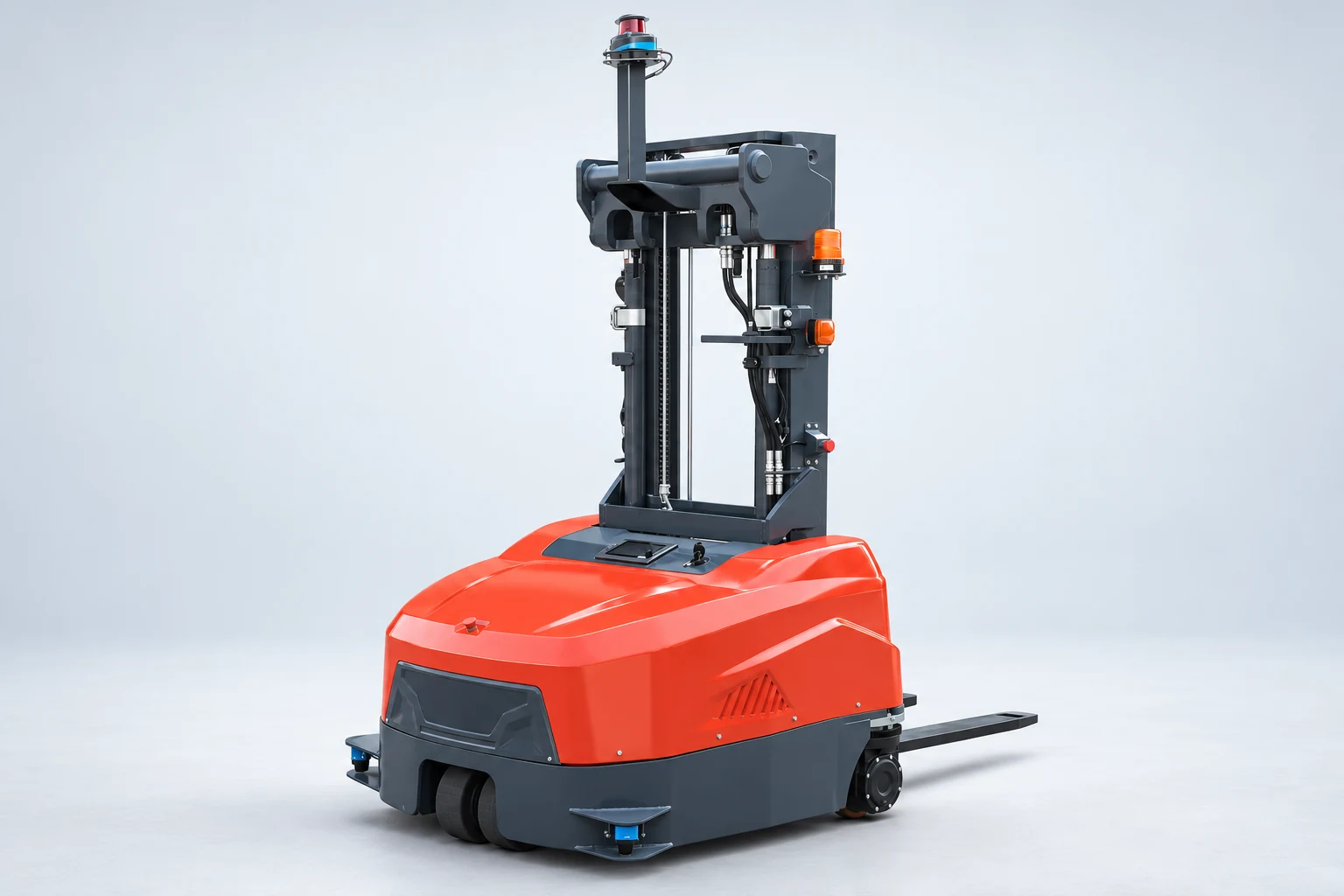

Reviewed 28 October 2026. Source dating: Regional company product body, full table, mapped original and branch-network record reviewed 28 October 2026. Current build revision and technical release date unverified.. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes
The regional company catalogue publishes the complete code CPD10SQ-AGV1A1LI for an omnidirectional counterbalance AGV. The table lists 1000 kg rated load, 4000 mm maximum lifting height, laser navigation and a 24 V / 272 Ah standard battery entry. These values identify the enquiry scope, not a promise that 1000 kg is retained at 4000 mm. The narrative separately mentions 2.9 m without load reduction; the inspected body does not provide a full load-centre and residual-capacity chart.
Keep the reference and interfaces together
The listed standard envelope including forks is 2430 × 1296 × 2500 mm and vehicle weight is 2450 kg. A right-angle stacking-width entry of 2840 mm is tied to a 1200 × 1200 mm pallet. That stated pallet basis cannot be carried across to longer loads or an unreviewed aisle. The source also lists 1250 mm minimum turning radius and 5G/WIFI communication. Catalogue accuracy and speed figures remain conditional supplier data rather than validated site performance. The rear-angle illustration follows the original form, not a dimensional or sensor coverage diagram.
Keep the supply package explicit
Prepare the actual pallet, goods centre of gravity, lift and rack heights, route and clearance data and request the model-specific mast/capacity documents. Confirm the battery, charger, navigation package, communication environment, software integration and supplied sensor configuration in the offer. Claims about endurance, automated charging and multiple safety protections are not an independent assessment of the proposed site. Keep acceptance tests and engineering responsibilities explicit before procurement.
Questions for the proposed product
What belongs in an AGV requirement?
Record the full model code, actual goods and carrier dimensions, gross mass and centre of gravity, pallet or cart interfaces, pickup and drop-off heights, floor and route information, clearances, duty, charging opportunities and destination. Ask the supplier to review the complete material flow and exceptions rather than selecting on capacity alone.
What must be agreed for integration?
Request current drawings, configuration and capacity documents, navigation and communication requirements, charging scope, host-system interface specification and a written responsibility matrix. Define test cases, acceptance conditions, manual recovery responsibilities and changes to existing operations with the responsible supplier and site team. No commissioning or operating sequence is given here.
How should the offer be compared?
Confirm which legal entity quotes and invoices, the actual build revision, included vehicle and software, chargers, site infrastructure, services, documents, lead time, warranty and exclusions. A regional catalogue is not proof of Shaoxing stock or a turnkey installation. Existing procurement links help prepare the requirement; clicking them is not a completed enquiry.
From product research to a comparable request
Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The Hangzhou HELI company-controlled network identifies its Shaoxing branch at No.374 Changpu Street, Paojiang, Shaoxing. These AGV entries come from the regional company catalogue, not a branch-specific inventory list. Four full product tables and their mapped original images were reviewed; model suffixes, capacity columns and open interface questions remain distinct. Current legal contracting identity, stock, delivery, configuration, application approval and performance outcomes require a written offer and responsible project review. Illustrations explain external form, not site tests, dimensions or an approved sensor package.
