HELI CQD16–30 high-lift warehouse AGV family

What the official reference establishes

The catalogue table names CQD16-AGV1B1LI, CQD20-AGV1B1LI, CQD25-AGV11CLI and CQD30-AGV11CLI. The different 1B1LI and 11CLI suffixes are retained as printed, not silently standardized. Their respective rated-load entries are 1600, 2000, 2500 and 3000 kg; all four columns separately list an 8500 mm maximum lifting height. No full-height rated-load claim follows from those two rows. A current mast, load-centre and residual-capacity chart is still required for the proposed goods.

Keep the reference and interfaces together

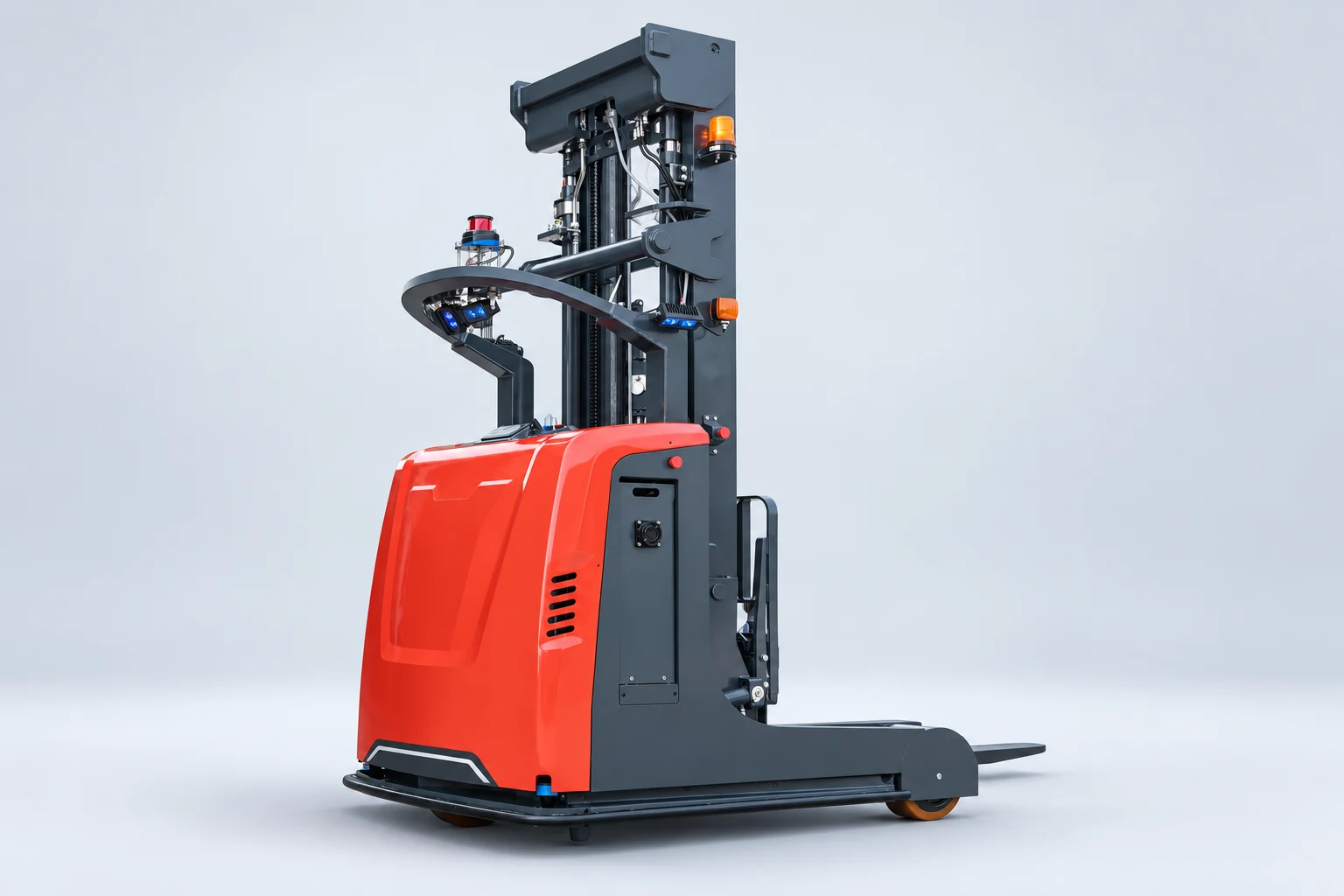

Corresponding standard battery entries are 48 V / 202 Ah, 48 V / 280 Ah, 80 V / 202 Ah and 80 V / 280 Ah. The respective vehicle weights are 3820, 3846, 4400 and 4660 kg. The table also distinguishes turning radii and stacking widths using a 1200 × 1200 mm pallet basis. Do not combine the compact envelope or battery from one column with the capacity of another. One source image represents the family, not every mast, chassis or sensor package in all four columns.

Keep the supply package explicit

Request a current configuration schedule and drawings for the actual rack, pallet, goods, aisle, floor and lift requirement. Confirm energy equipment, charging interfaces, fleet/navigation software, wireless network and acceptance responsibilities. The narrative describes automatic fork-spacing and side charging, but neither feature is treated as an included option on every build without the written offer. Efficiency, endurance and protective-function claims remain supplier statements. This reference is not a site design, commissioning instruction or evidence of branch inventory.

Questions for the proposed product

What belongs in an AGV requirement?

Record the full model code, actual goods and carrier dimensions, gross mass and centre of gravity, pallet or cart interfaces, pickup and drop-off heights, floor and route information, clearances, duty, charging opportunities and destination. Ask the supplier to review the complete material flow and exceptions rather than selecting on capacity alone.

What must be agreed for integration?

Request current drawings, configuration and capacity documents, navigation and communication requirements, charging scope, host-system interface specification and a written responsibility matrix. Define test cases, acceptance conditions, manual recovery responsibilities and changes to existing operations with the responsible supplier and site team. No commissioning or operating sequence is given here.

How should the offer be compared?

Confirm which legal entity quotes and invoices, the actual build revision, included vehicle and software, chargers, site infrastructure, services, documents, lead time, warranty and exclusions. A regional catalogue is not proof of Shaoxing stock or a turnkey installation. Existing procurement links help prepare the requirement; clicking them is not a completed enquiry.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The Hangzhou HELI company-controlled network identifies its Shaoxing branch at No.374 Changpu Street, Paojiang, Shaoxing. These AGV entries come from the regional company catalogue, not a branch-specific inventory list. Four full product tables and their mapped original images were reviewed; model suffixes, capacity columns and open interface questions remain distinct. Current legal contracting identity, stock, delivery, configuration, application approval and performance outcomes require a written offer and responsible project review. Illustrations explain external form, not site tests, dimensions or an approved sensor package.
