Supplier catalogue product referenceRobot Phoenix AGV-Squirrel-50 compact lifting robot
A 50 kg compact lifting reference with QR navigation and an adjustable screw-driven lift; the carrier still needs a drawing.
Identify the enquiry scope
- Full catalogue code
- AGV-Squirrel-50
- Published load / envelope
- 50 kg; 678 × 450 × 435 (±5) mm
- Lift entry
- Electric + screw; 400 mm adjustable, application to confirm
- Navigation / energy
- QR; LFP 10 Ah / 48 V
Reviewed 28 October 2026. Source dating: Official company catalogue, six detail bodies with parameter panels and mapped originals reviewed 28 October 2026. Technical release date and actual build revision unverified.. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes
The official AGV-Squirrel-50 page lists a 50 kg rated load, 678 × 450 × 435 (±5) mm envelope, 678 mm rotation diameter and 70 kg vehicle mass. It describes electric plus screw lifting and prints a 400 mm adjustable lift-height entry. These separate values do not establish an approved 50 kg load at every lift position or turn the machine into a high-stacking forklift. The source leaves the lift-panel dimensions unspecified, so the upper carrier and load support require their own drawings.
Keep the reference and interfaces together

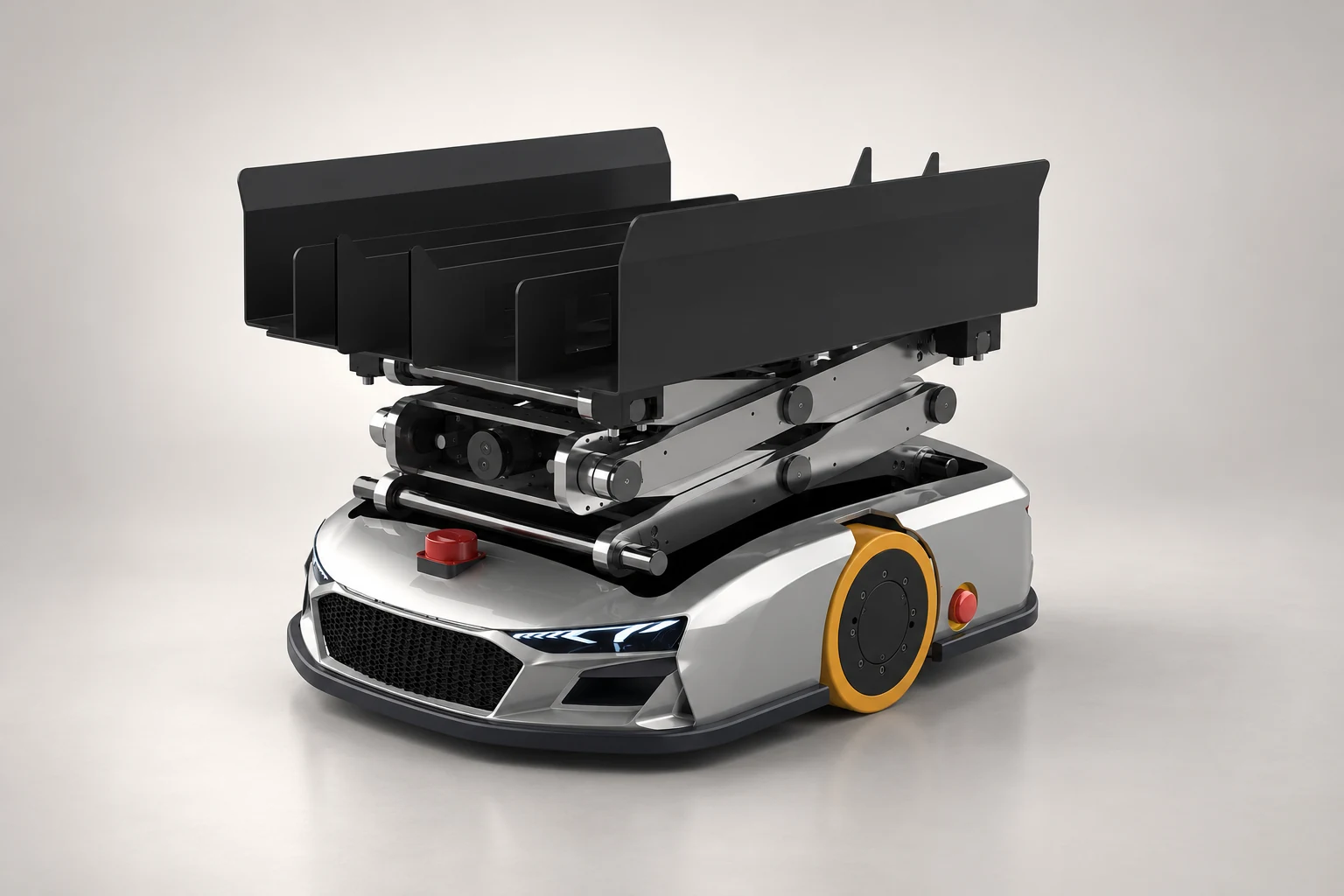

The table distinguishes differential drive and QR navigation. A front laser-obstacle entry does not establish laser SLAM navigation; no 3D vision package is identified in the inspected rows. The source lists 25 mm clearance and a 10 Ah / 48 V lithium iron phosphate battery. Its runtime, charge-time, speed and positioning figures are conditional supplier data, not verified outcomes for a proposed load, route or duty cycle. The source-based illustration retains the lifting linkage and channel-shaped cradle without claiming that this is the supplied carrier.
Keep the supply package explicit
Provide the item and fixture geometry, support points, centre of gravity, transfer heights and route information. Request the complete loaded envelope, lift/load limits, carrier drawing, QR layout requirements, charging and host-integration specification. Agree how the actual site and operating conditions will be assessed and accepted. This reference gives no adjustment, lifting, operating or recovery instructions and does not establish an included kit, local stock or approval for a particular application.
Questions for the proposed product
What should the requirement contain?
Record goods dimensions, gross mass and centre of gravity, load support and fixture drawings, pickup and drop-off heights, complete loaded envelope, floor and route conditions, duty, charging opportunities and destination. A payload row is not an approved carrier, trolley, fixture or site design.
Which integration documents are needed?
Ask for the exact build revision, carrier and interface drawings, load limits, battery and charger schedule, navigation choice, host-system protocol and included software. Define acceptance tests, responsibility for site assessment and integration, exceptional conditions and support scope with the responsible supplier. This page gives no commissioning or recovery procedure.
How should offers be compared?
Confirm the legal quoting and invoicing entity, actual configuration, included sensors, software, chargers, services, delivery, warranty and exclusions. The corporate catalogue and published subsidiary address do not establish Shaoxing stock, local manufacture or an approved installation. Existing purchasing paths prepare a request; a click is not an enquiry.
From product research to a comparable request
Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The current Robot Phoenix company website publishes its Shaoxing subsidiary address in Shangyu, Zhejiang. These references are drawn from the corporate material-handling catalogue, not a local stock list. Six full product bodies, their parameter panels and mapped original images were reviewed. Closely related capacities are grouped while lifting systems, battery rows and source inconsistencies remain distinct. Separate legal identity, current quoting entity, configuration, inventory and site acceptance require written confirmation. Illustrations explain external form and are not stock photographs, dimensional drawings or approved sensor layouts.
