Robot Phoenix Camel-H200 omnidirectional platform

What the official reference establishes

The official Camel-H200 body identifies a mobile platform with a 200 kg rated-load entry, 720 × 550 × 335 (±2) mm envelope, 850 mm rotation diameter and 70 kg vehicle mass. These are attributed catalogue values, not independently tested performance or approval for an added fixture. The lifting panel, lifting drive and lifting-height rows all contain dashes. Do not infer a lifting function from the Camel family name or from other models in this catalogue.

Keep the reference and interfaces together

The source describes four steered-wheel motion including lateral movement and lists laser SLAM navigation. Its table gives 40 mm ground clearance, conditional positioning figures and optional front/rear/side 3D vision. The narrative also mentions 3D cameras without the same option distinction, so the written configuration must establish what is actually included. Four-wheel motion does not remove the clearance required by the loaded body and its stopping or turning envelope.

Keep the supply package explicit

The battery row permits lithium iron phosphate or ternary lithium and prints the capacity/voltage string “20/48+40/48 (optional) Ah/V”. This does not establish a combined battery capacity or an included dual-battery package. The speed entry “72m/90m/min” is also unclear, while runtime and charging-time rows are blank. Request a corrected current schedule rather than converting these into promises. Confirm the top interface, load distribution, battery, charger, navigation and sensor package for the actual route. No site safety, gradient or endurance approval follows from the page.

Questions for the proposed product

What should the requirement contain?

Record goods dimensions, gross mass and centre of gravity, load support and fixture drawings, pickup and drop-off heights, complete loaded envelope, floor and route conditions, duty, charging opportunities and destination. A payload row is not an approved carrier, trolley, fixture or site design.

Which integration documents are needed?

Ask for the exact build revision, carrier and interface drawings, load limits, battery and charger schedule, navigation choice, host-system protocol and included software. Define acceptance tests, responsibility for site assessment and integration, exceptional conditions and support scope with the responsible supplier. This page gives no commissioning or recovery procedure.

How should offers be compared?

Confirm the legal quoting and invoicing entity, actual configuration, included sensors, software, chargers, services, delivery, warranty and exclusions. The corporate catalogue and published subsidiary address do not establish Shaoxing stock, local manufacture or an approved installation. Existing purchasing paths prepare a request; a click is not an enquiry.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

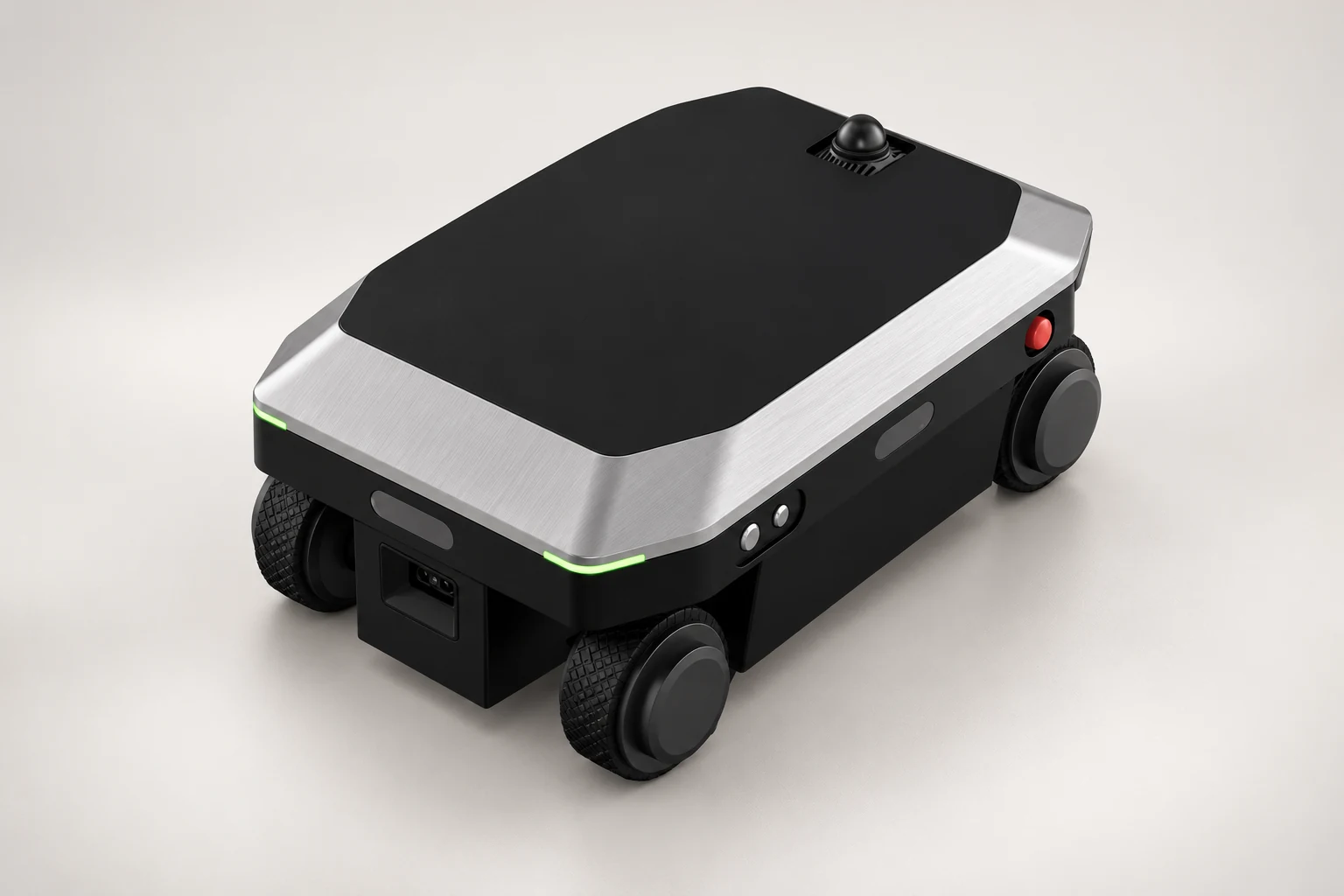

The current Robot Phoenix company website publishes its Shaoxing subsidiary address in Shangyu, Zhejiang. These references are drawn from the corporate material-handling catalogue, not a local stock list. Six full product bodies, their parameter panels and mapped original images were reviewed. Closely related capacities are grouped while lifting systems, battery rows and source inconsistencies remain distinct. Separate legal identity, current quoting entity, configuration, inventory and site acceptance require written confirmation. Illustrations explain external form and are not stock photographs, dimensional drawings or approved sensor layouts.
