Liandong L-series rotator

What the official reference establishes

The official rotation catalogue names an L-series rotator and provides a dedicated product photograph. Its detail is dated 26 March 2024. The linked 24-page English rotator manual describes rotating and tipping goods, supporting the product’s functional role. It does not turn a family reference into a complete offered suffix, nor establish an exact rotation range, torque, speed, fork length or load rating for the unit being quoted.

Keep the reference and interfaces together

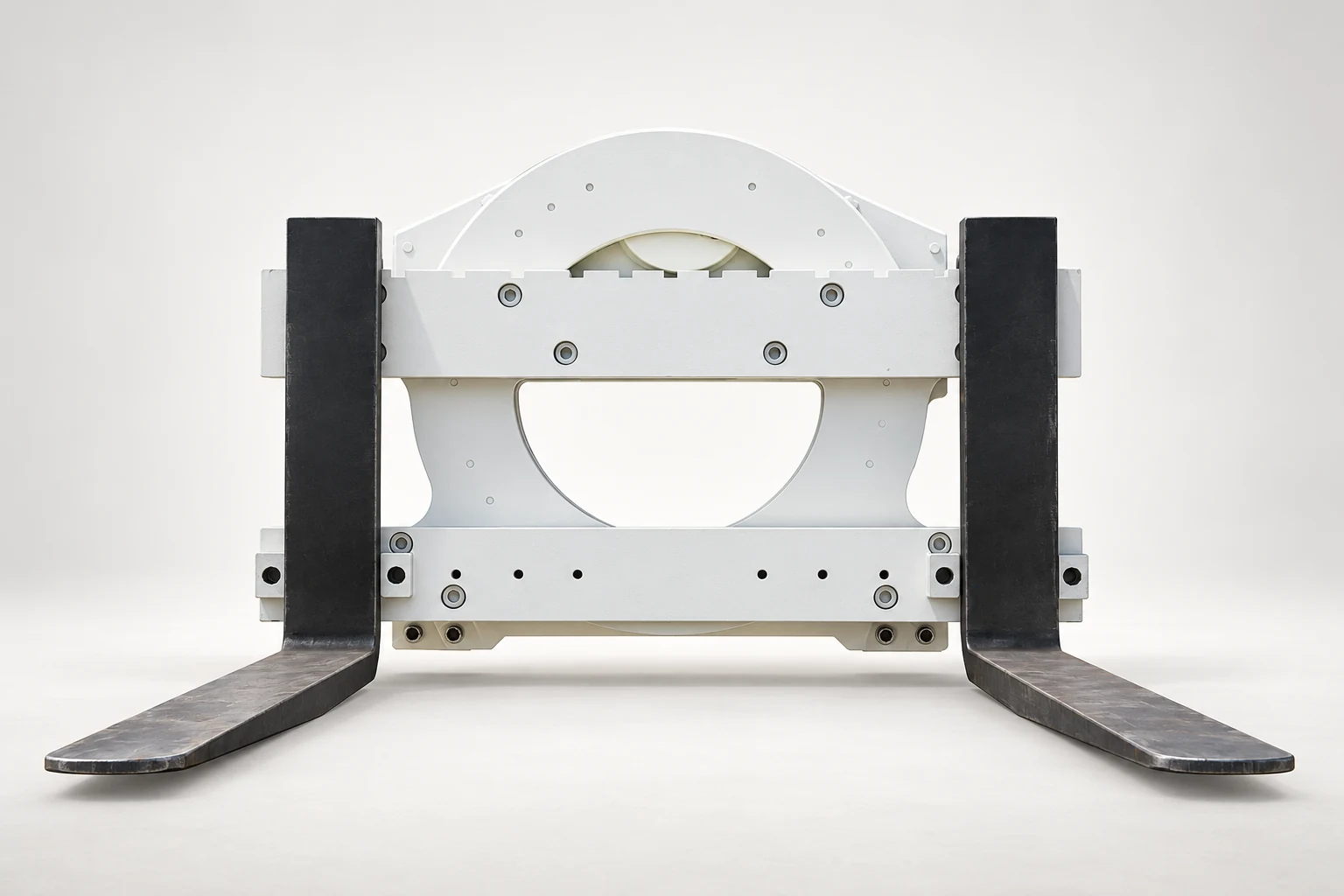

The source image shows an off-white circular housing behind two horizontal rails and two dark fork tines. The illustration follows that configuration, without treating the visible forks as proof of included supply or exact dimensions. Keep the rotator distinct from a rotating clamp: the illustrated forks and a paper-roll clamp use different load-contact arrangements. Similar colour, series lettering or a rotating function is not evidence of an interchangeable mechanism or a matched kit.

Keep the supply package explicit

Record the goods or container, its support and retention arrangement, load centre, required orientation and actual truck/mast identity. Request the proposed rotation specification, model and revision, fork and mounting drawings, attachment mass and forward offset, hydraulic/control scope and approval for the combined application. The manual separately discusses nominal attachment capacity and the truck-attachment combination. No load-retention performance, self-locking outcome, current stock or universal rotation rating is adopted from general family wording.

Questions for the proposed product

What belongs in an attachment request?

Record the truck model and serial, carriage and existing attachment identity, goods geometry and weight, load centre, lift-height requirement, required movement, quantity and destination. Add available mounting and hydraulic documents and the actual application. Request a complete offered model and drawing revision rather than selecting on a series letter alone.

Which capacity should the buyer compare?

Ask for the attachment nameplate and rated-load basis, its mass and forward offset, and the approved capacity of the actual truck, mast and attachment combination. Keep attachment capacity and the truck’s remaining capacity separate. The responsible manufacturer or supplier must define the proposed configuration and documentation.

What should the supply package include?

State which forks, backrest, hooks, contact pads, hydraulic components, hoses, controls, documents and services are included or excluded. Confirm the quoting legal entity, current drawing and manual revision, delivery, warranty and support. The existing procurement tools prepare a written request; a click does not send or prove an enquiry.

From product research to a comparable request

Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.

Sources and evidence boundary

The current HELI-hosted Liandong portal identifies the Chinese company and its No.16 Fangxing Road, Anqing address. Four company product bodies, their own original images and linked English family manuals were reviewed. The product photos establish representative forms; the manuals add functional and document context. Neither replaces a current complete model, controlled drawing, fitted-truck capacity assessment or written offer. Identical series letters on another manufacturer’s page do not establish a shared product. Supplier URLs identify plain-text sources; existing internal purchasing routes remain below.

https://www.helichina.com/ldsj/cpzx/xzl/202101/t20210119_5079908.html

https://www.helichina.com/ldsj/cpzx/xzl/202101/W020240326576468190950.jpg

https://www.helichina.com/ldsj/cpzx/cpsc/202603/t20260309_9143281.html

https://www.helichina.com/ldsj/cpzx/cpsc/202603/W020260309511292894896.pdf

https://www.helichina.com/ldsj/zjgs/gsjj/

https://www.helichina.com/ldsj/lxwm/lxfs/
