Anqing Liandong Attachments supplier profile / Liandong paper-roll clamp
Supplier catalogue product referenceLiandong paper-roll clamp family
Compare the roll and contact arrangement before capacity. Arm type, roll dimensions, pad scope and the truck’s remaining capacity belong in the same request.
Identify the enquiry scope
- Official category
- Paper-roll clamp within Liandong rotation range
- Manual arm alternatives
- Fixed short arm, adjustable short arm, separated long arms
- Matching inputs
- Roll geometry, weight, surface and orientation
- Document reviewed
- 28-page English roll-clamp manual
Reviewed 29 October 2026. Source dating: Official company, product and manual bodies reviewed 29 October 2026. GC product date blank; K/L/roll details show 26 March 2024. Current offered revision unverified.. Catalogue family and model examples retained; illustration is representative, not an exact model.
What the official reference establishes
The official rotation catalogue lists a paper-roll clamp with its own original image and a detail dated 26 March 2024. The linked 28-page English roll-clamp manual describes handling paper rolls in horizontal or vertical orientations and discusses fixed short-arm, adjustable short-arm and separated long-arm arrangements. These are alternatives within a family, not features automatically included together. The product body does not give a complete offered model or an applicable diameter, opening or rated-load table.
Keep the reference and interfaces together

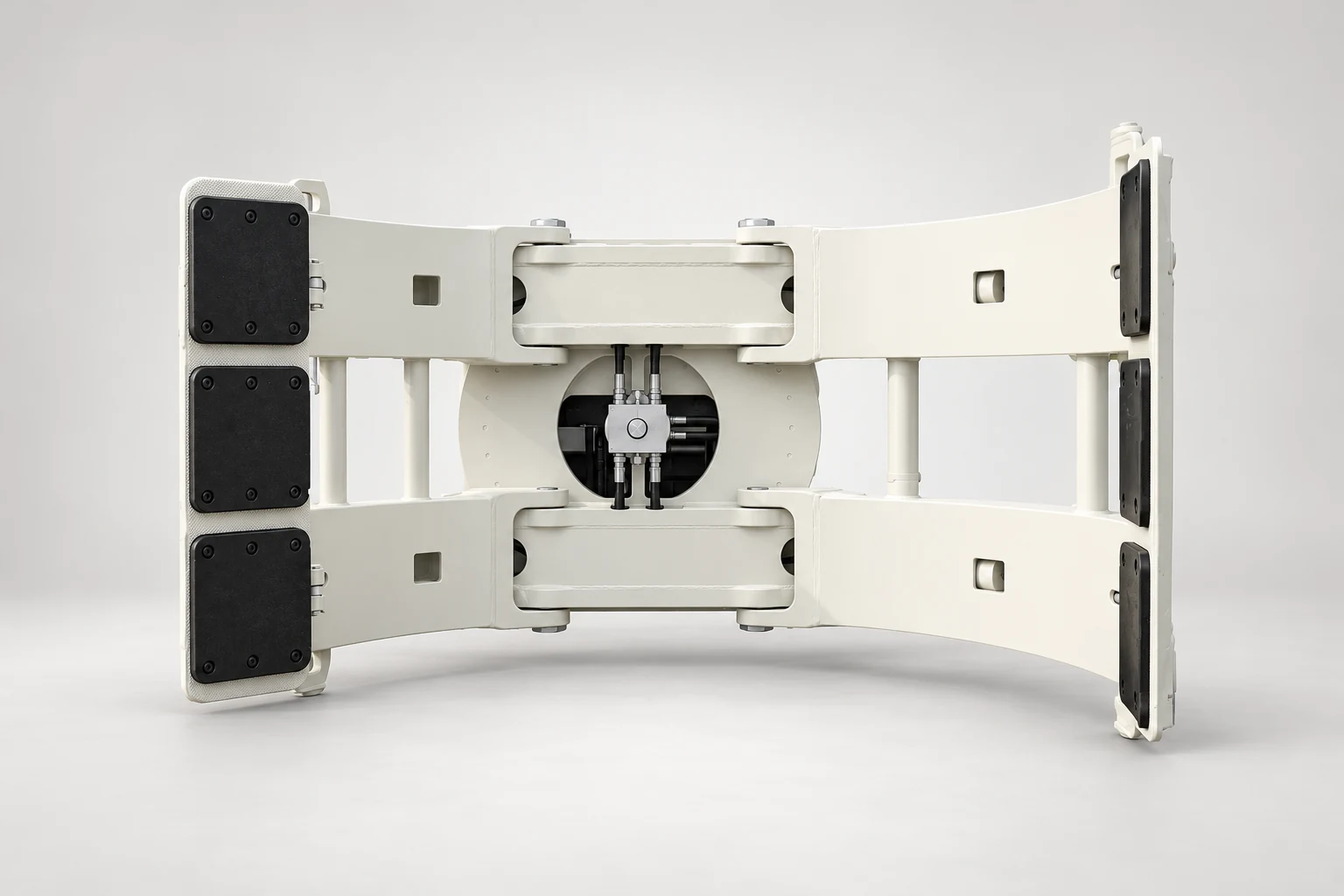

The illustration follows the source’s curved arms, rotary backplate and segmented contact pads without cargo. It does not establish pad material, permitted contact pressure, roll-surface protection or the ability to carry two rolls. The manual’s discussion of a separated-arm option is not proof that this pictured configuration has that option. Likewise, a general rotation description must be confirmed for the actual model and controls rather than extended to every family member.
Keep the supply package explicit
Prepare roll diameter, width, weight, orientation, surface and handling requirements, together with the truck/mast and existing attachment records. Request arm and pad specifications, opening range, rotation scope, mass, forward offset and controlled application drawings. The manual distinguishes nominal clamp capacity from actual combined truck-clamp capacity and directs that combination assessment to the truck supplier/manufacturer. Ask for that documentation and an explicit supply schedule; no pressure-setting, clamp adjustment or operating procedure is provided here.
Questions for the proposed product
What belongs in an attachment request?
Record the truck model and serial, carriage and existing attachment identity, goods geometry and weight, load centre, lift-height requirement, required movement, quantity and destination. Add available mounting and hydraulic documents and the actual application. Request a complete offered model and drawing revision rather than selecting on a series letter alone.
Which capacity should the buyer compare?
Ask for the attachment nameplate and rated-load basis, its mass and forward offset, and the approved capacity of the actual truck, mast and attachment combination. Keep attachment capacity and the truck’s remaining capacity separate. The responsible manufacturer or supplier must define the proposed configuration and documentation.
What should the supply package include?
State which forks, backrest, hooks, contact pads, hydraulic components, hoses, controls, documents and services are included or excluded. Confirm the quoting legal entity, current drawing and manual revision, delivery, warranty and support. The existing procurement tools prepare a written request; a click does not send or prove an enquiry.
From product research to a comparable request
Prepare a written requirement with the duty or installed component identity, current drawings or part records, quantity, destination and requested supply scope. Compare the exact proposed configuration or component and keep unresolved differences visible. Existing supplier and purchasing tools remain below; following a link does not itself send an enquiry.
Sources and evidence boundary
The current HELI-hosted Liandong portal identifies the Chinese company and its No.16 Fangxing Road, Anqing address. Four company product bodies, their own original images and linked English family manuals were reviewed. The product photos establish representative forms; the manuals add functional and document context. Neither replaces a current complete model, controlled drawing, fitted-truck capacity assessment or written offer. Identical series letters on another manufacturer’s page do not establish a shared product. Supplier URLs identify plain-text sources; existing internal purchasing routes remain below.
